2.12 INTERNAL FINISHER (D429)
This procedure explains how to install the internal finisher, without installing the punch unit
at the same time.
2.12.1 COMPONENT CHECK

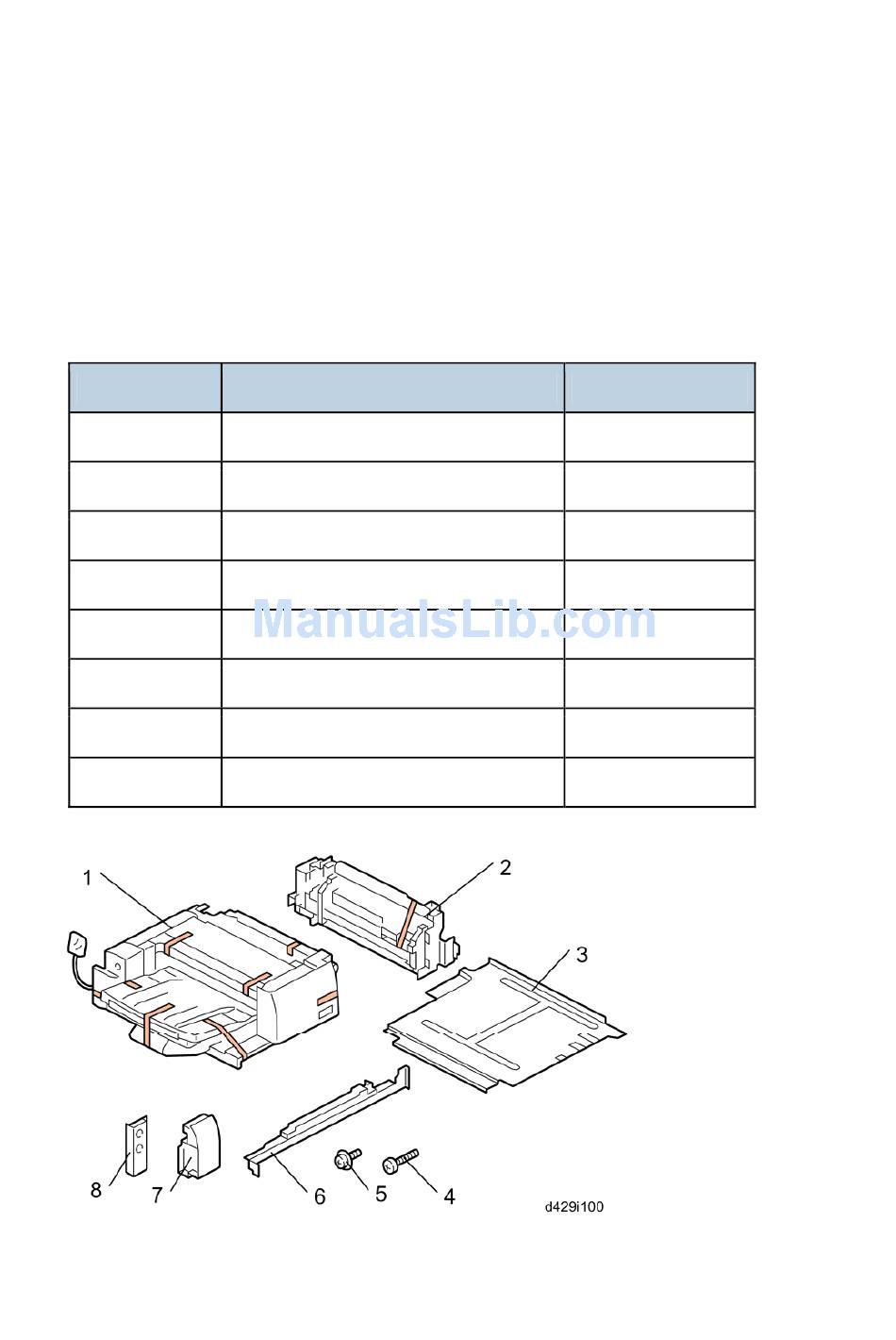

Check the quantity and condition of the components against the following list.
No.
1 Internal Finisher
2 Inverter Unit
3 Inner Bottom Plate
4 Screw: M3x10
5 Screw: M3x6
6 Guide Rail
7 Inverter Cover
8 Left Cover
D037/D038/D040/D041
Description
2-42
Q'ty
1
1
1
3
11
1
1
1
