Fusing Belt - Ricoh D037 Service Manual

Fusing

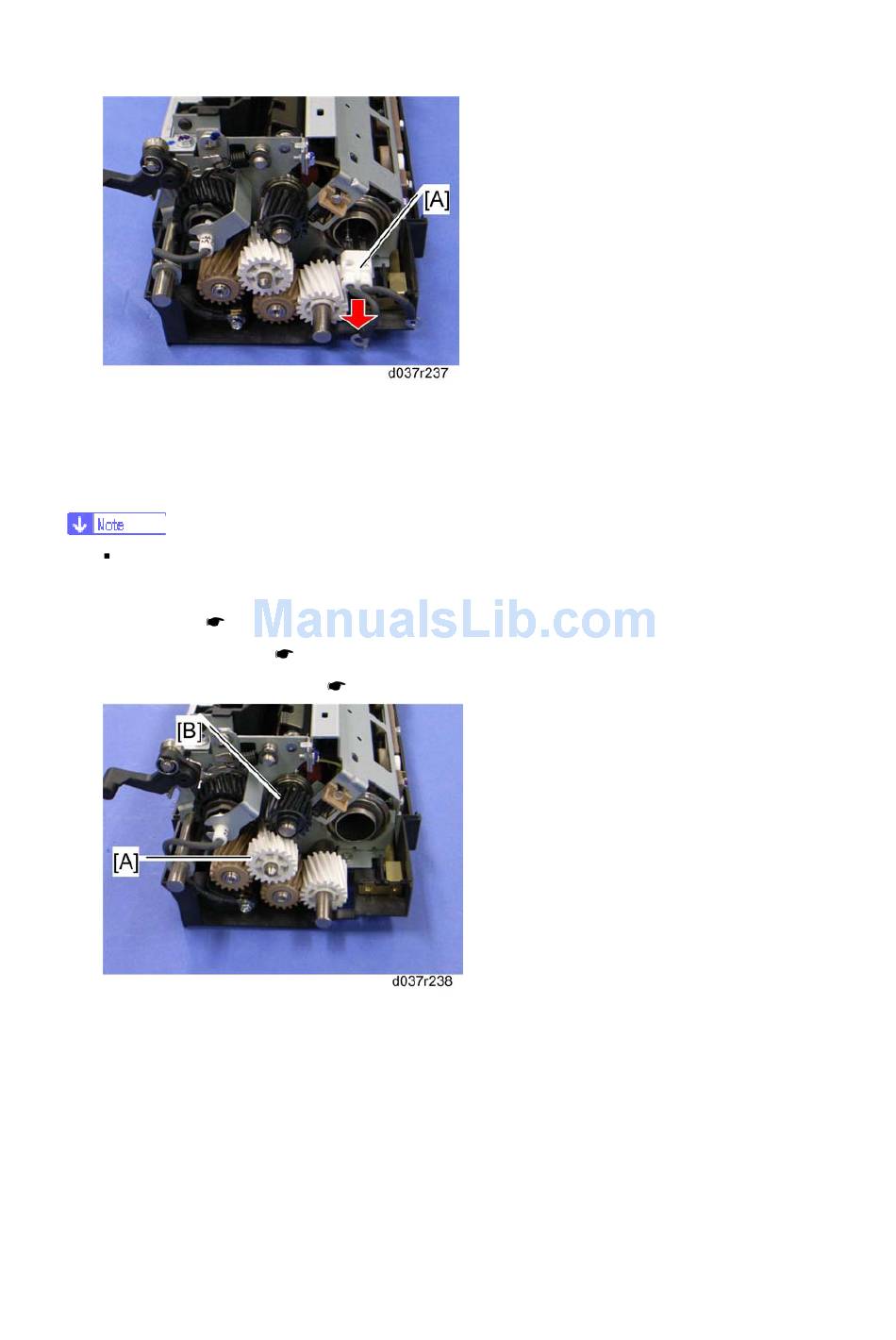

5. Heating roller fusing lamp [A]

4.11.8 FUSING BELT

If you install a new fusing belt, set SP 3902-016 to "1" before you start this procedure.
If you do this, then the machine will reset the PM counter for the fusing belt
automatically, after you turn the power on again.
1. Fusing unit ( Section: Fusing Unit)
2. Fusing upper cover (
3. Heating roller fusing lamp (
4. Idle gear [A] and fusing roller gear [B]
D037/D038/D040/D041
Section: Pressure Roller Fusing Lamp)
Section: Heating Roller Fusing Lamp)
4-88 SM
