Motors and Clutch

1.2 MOTORS AND CLUTCH
Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

1.2.1 PAPER FEED MOTOR

1. Rear Cover ( Rear Cover)

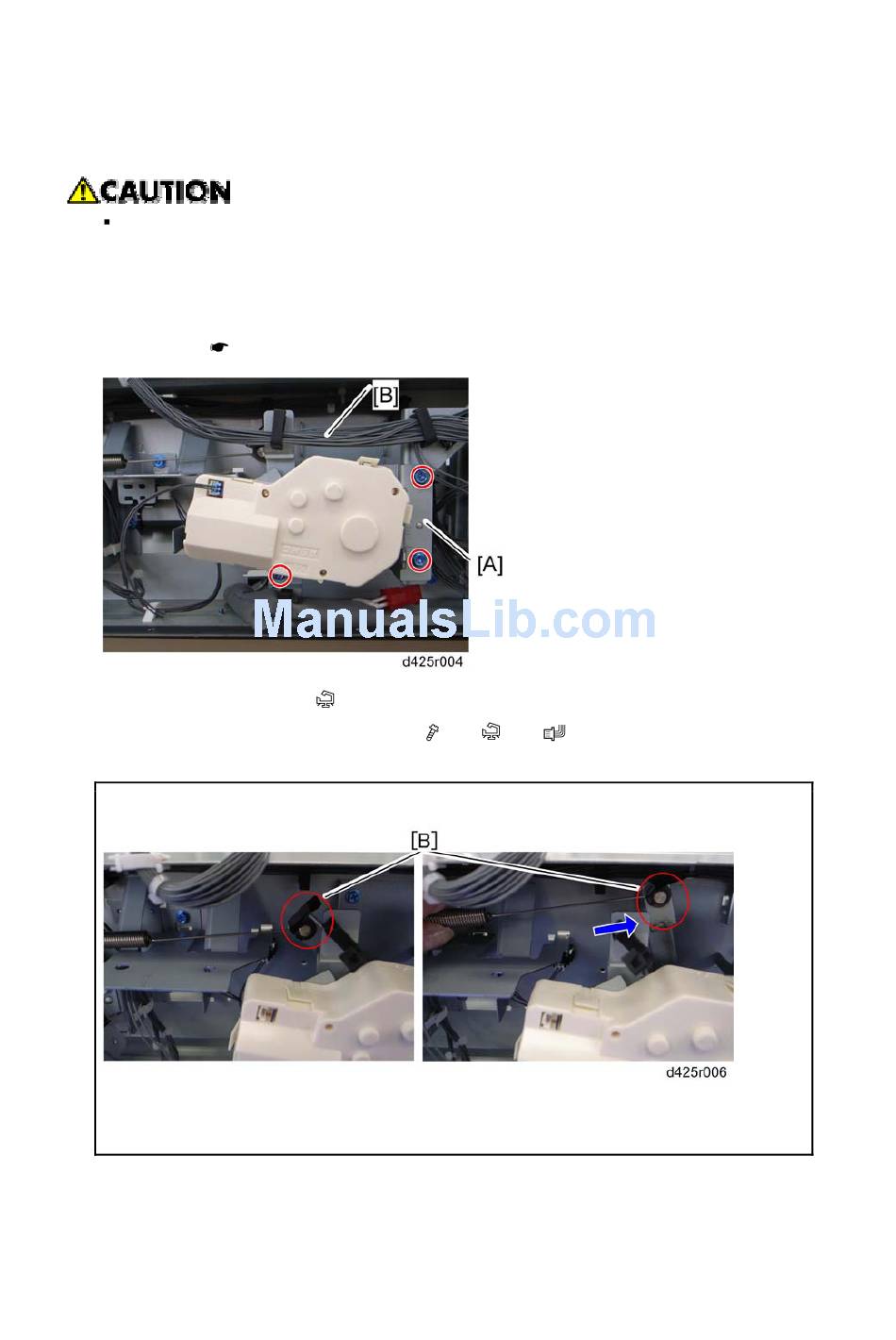

2. Release the harness [B] (
3. Paper feed motor with the bracket [A] (
Note:
Move the lever [B] in the red circle as shown above when removing the paper feed
motor with the bracket.
D425
x 2).
x 3, x 2,
2
x 1))
SM
