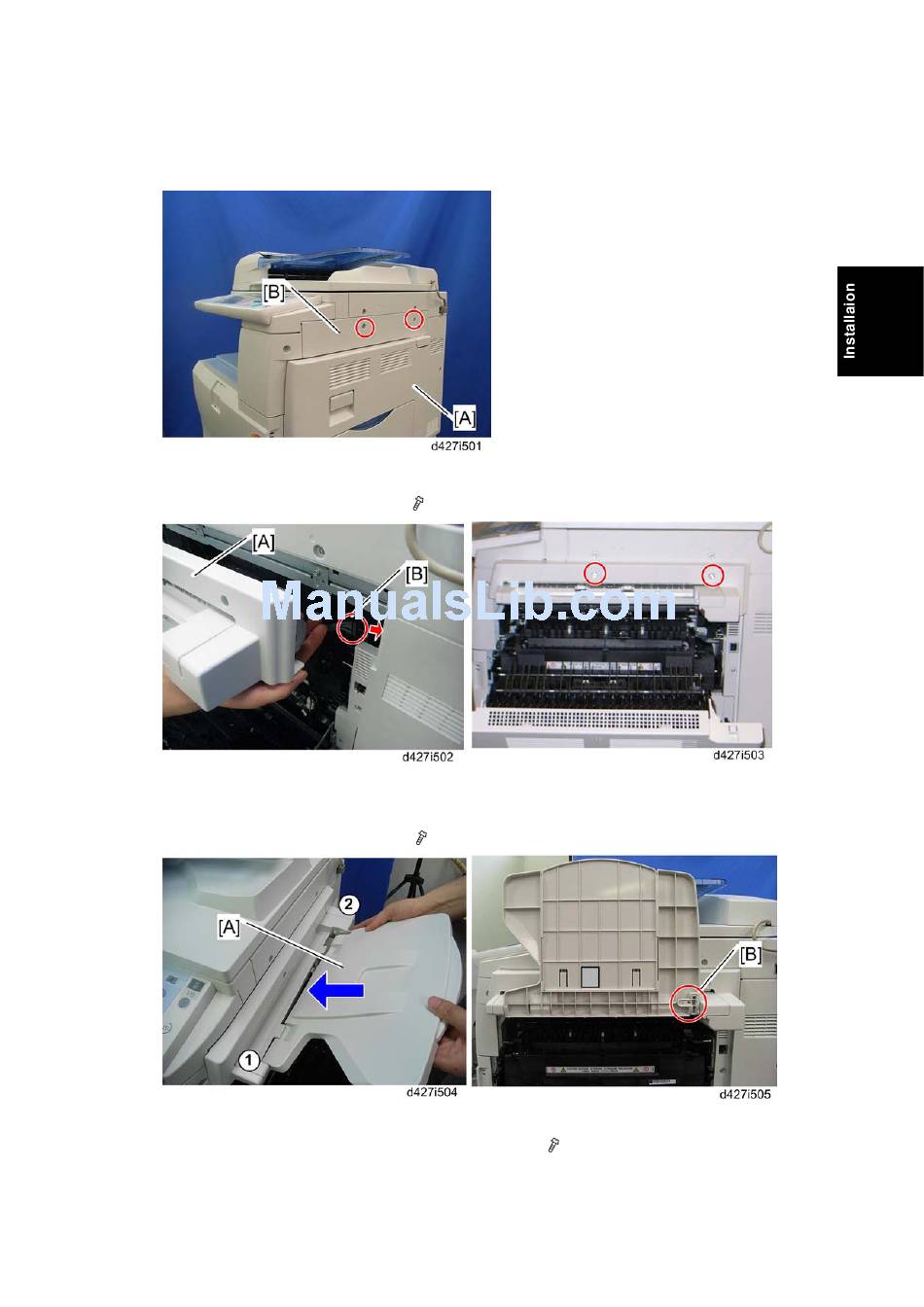

1. Remove all tapes on the side tray.
2. Open the duplex unit [A].
3. Remove the right upper cover [B] (
4. Close the side tray paper exit unit [A], and then connect the harness [B] to the
machine.
5. Install the side tray paper exit unit (
6. Install the side tray [A].
7. Lift the side tray, and then install the tray stopper [B] (
SM
x 2).
x 2: removed in step 3).
x 1: M3x8).
2-35
Side Tray (D427)
