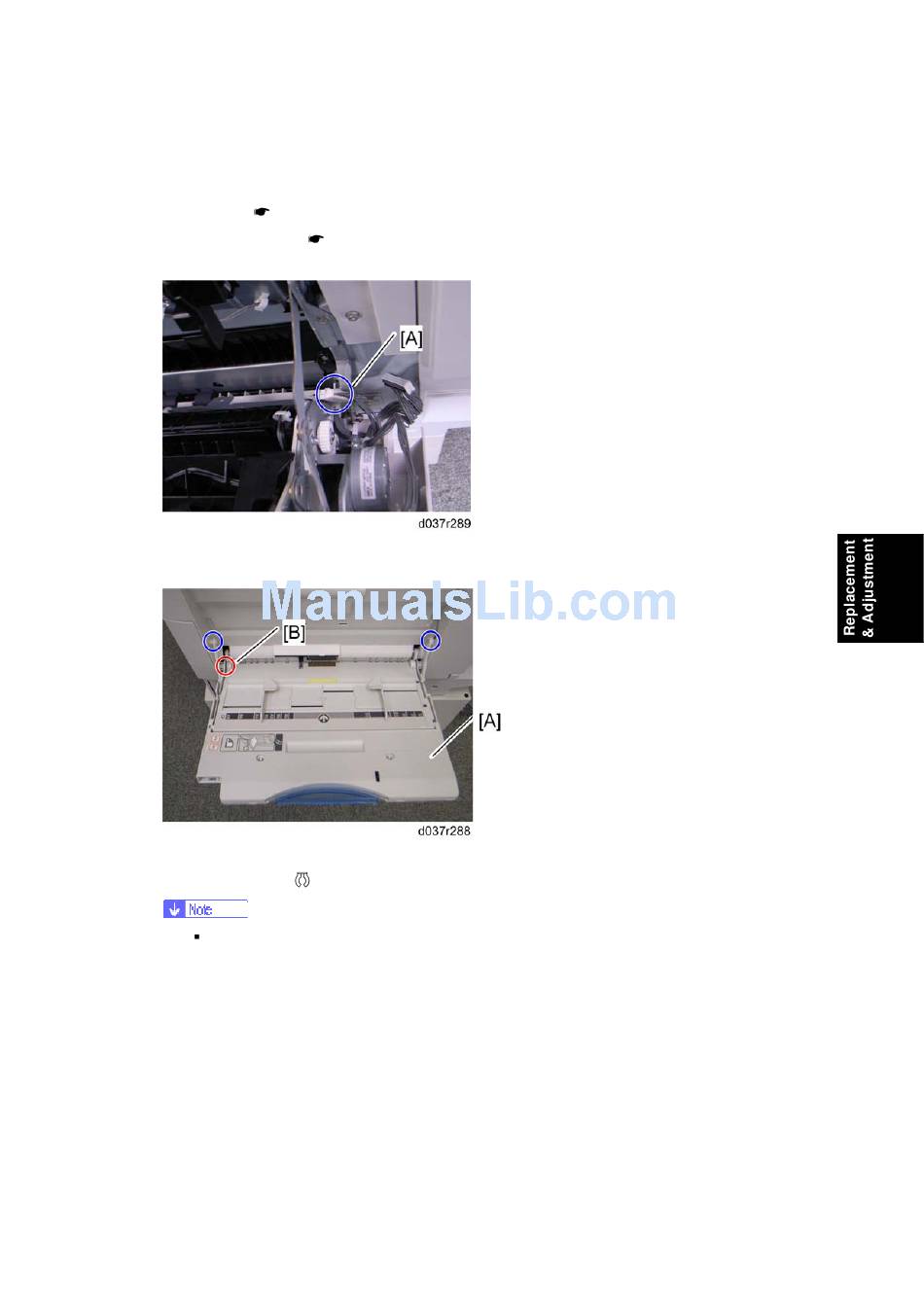

4.14.7 BY-PASS TRAY UNIT

1. Duplex unit ( Section: Duplex Unit)
2. Duplex inner cover (
3. Reinstall the duplex unit once, and open it.
4. Disconnect the harness [A].
5. Close the duplex unit.
6. Open the by-pass tray unit [A]
7. By-pass tray unit (
Use a flat-head screw driver or similar tool to push the hook [B] down.
4.14.8 BY-PASS PAPER LENGTH SENSOR
1. Open the by-pass tray unit.
SM
Section: Duplex Entrance Sensor)
x 2, hook [B]).
