Scanner Unit

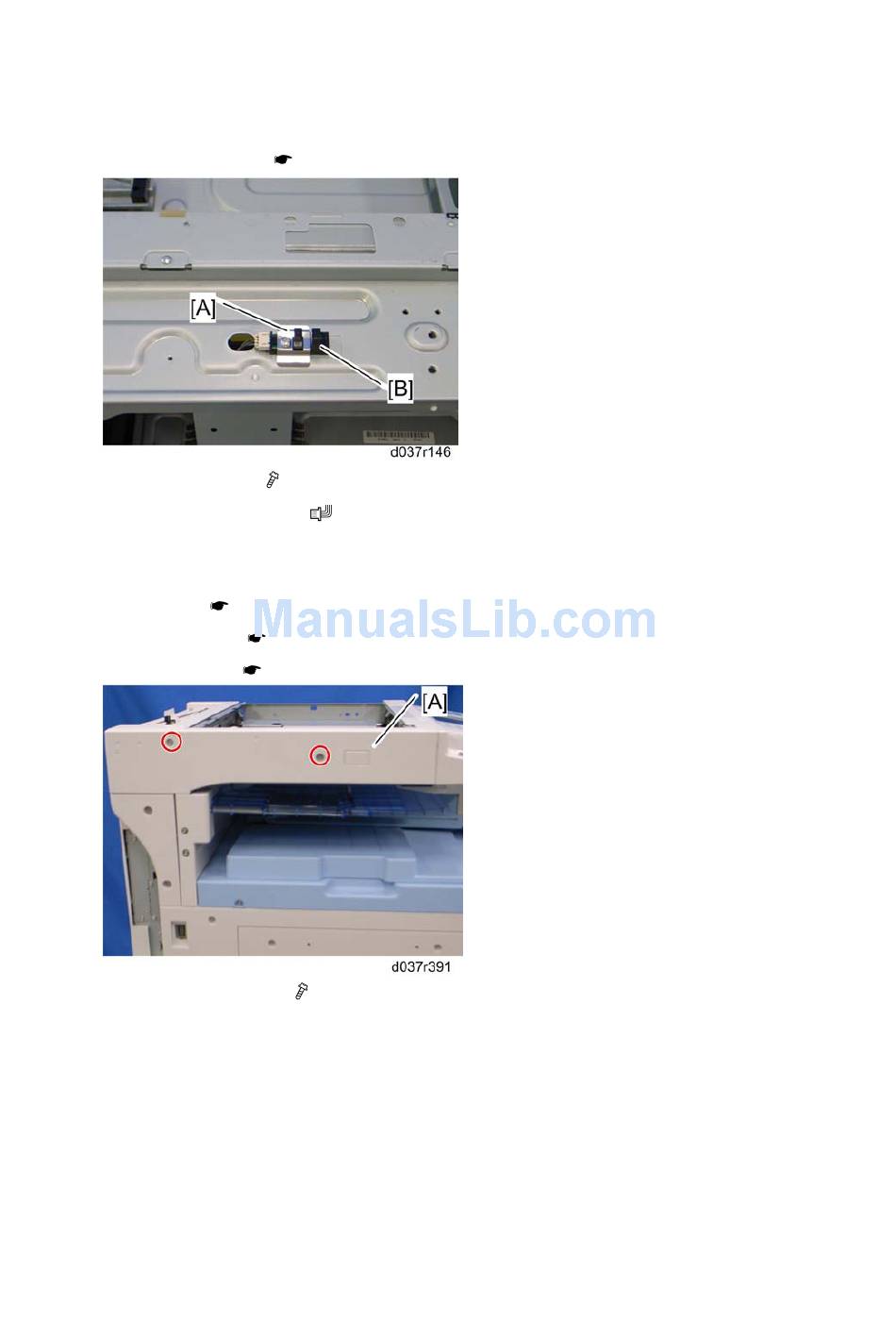

4.5.8 PLATEN COVER SENSOR
1. Scanner rear cover (
2. Holder bracket [A] (
3. Platen cover sensor [B] (
4.5.9 FRONT SCANNER WIRE
1. Rear Cover ( Section: Rear Cover)
2. Operation panel (
3. Exposure glass (
4. Scanner left cover [A] (
D037/D038/D040/D041
Section: Exposure Lamp)
x 1)
x 1)
Section: Operation Panel)
Section: Exposure Glass)
x 2)
4-34 SM
