1.3 ELECTRICAL COMPONENTS
Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

1.3.1 VERTICAL TRANSPORT SENSOR

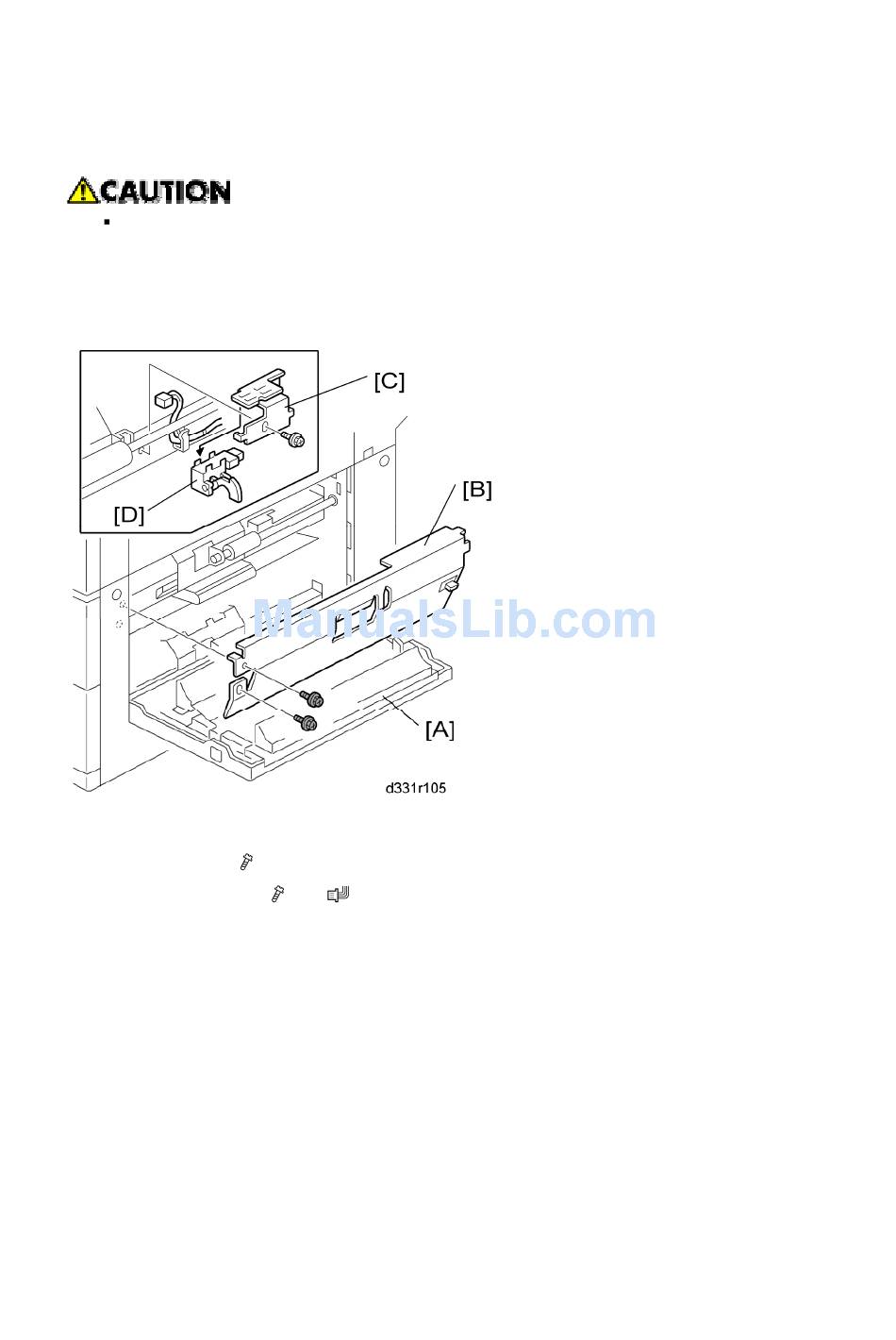

1. Open the tray cover [A]
2. Guide plate [B] (
3. Sensor bracket [C] (
4. Vertical transport sensor [D] (hooks)
D331
x 2)
x 1, x 1)
