2.18 COPY DATA SECURITY UNIT TYPE F (B829)

2.18.1 INSTALLATION

Unplug the main machine power cord before you do the following procedure.

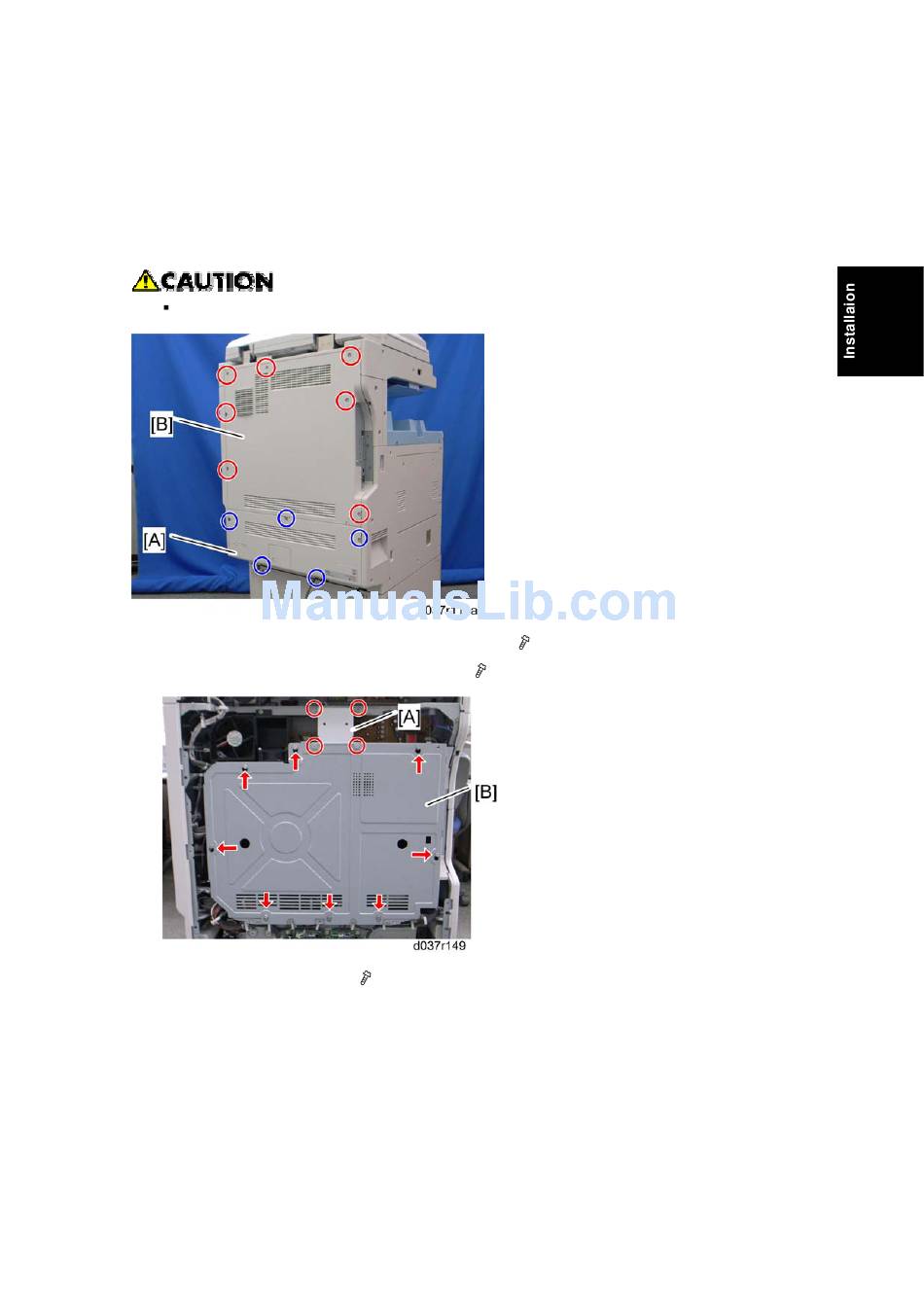

1. Remove the rear lower cover [A] of the machine (
2. Remove the rear cover [B] of the machine (
3. Scanner cable bracket [A] (
4. Loosen the eight screws, and slide up the controller box cover [B].
SM
Copy Data Security Unit Type F (B829)
x 5).
x 7)
x 4)
2-71 D037/D038/D040/D041
