2.6 CASTER TABLE (D488)

2.6.1 COMPONENT CHECK

No.
1 Caster Table
2 Pin
3 Step Screw

2.6.2 INSTALLATION PROCEDURE

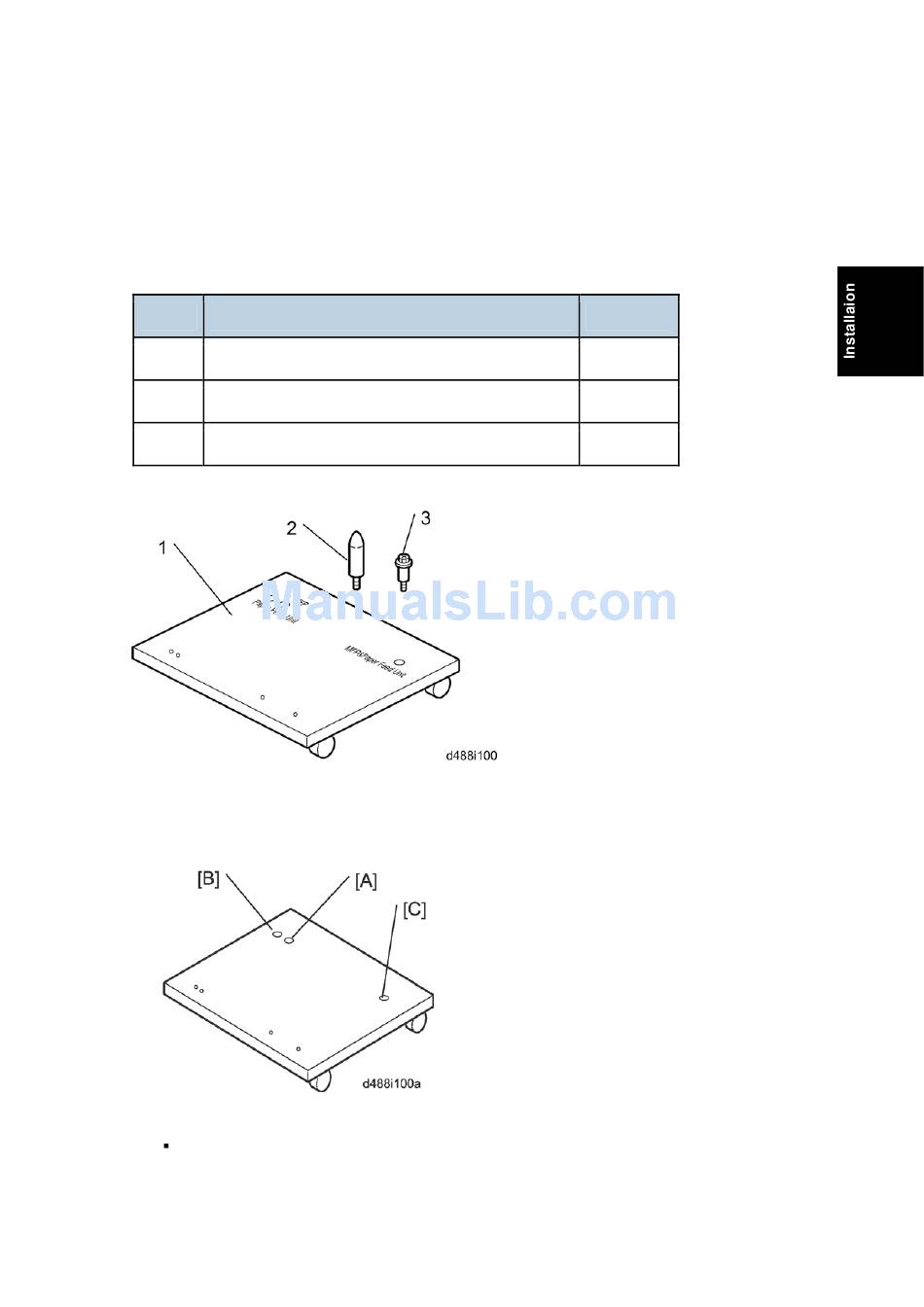

1. Put the caster table on a flat place.
2. Install the two pins in the screw holes.
Use the screw holes [A] and [C] if the mainframe is directly installed on the caster
SM
Description
2-27
Caster Table (D488)
Q'ty
1
2
2
