2.16 KEY COUNTER BRACKET

After the key counter bracket is installed in the mainframe, the following options cannot be
used at the same time.
Internal finisher (D429)
Handset (B433)

2.16.1 INSTALLATION PROCEDURE

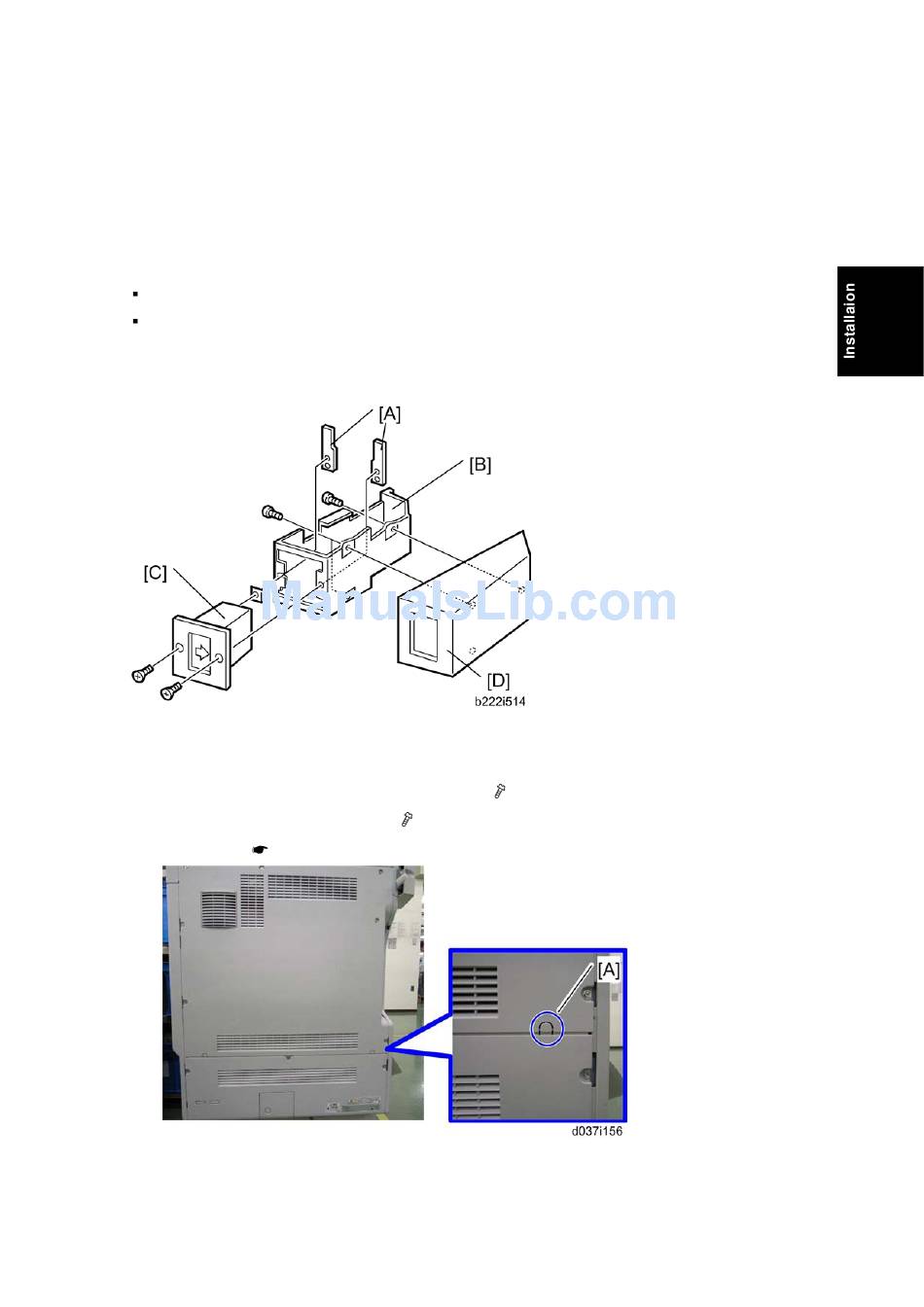

1. Hold the key counter plate nuts [A] on the inside of the key counter bracket [B] and
insert the key counter holder [C].
2. Secure the key counter holder to the bracket (
3. Install the key counter cover [D] (
4. Rear cover ( "Rear Cover" in the Replacement and Adjustment section)
5. Cut off the part [A] of the rear cover.
