Paper Feed Motor: T2 - Ricoh D037 Service Manual

Drive Unit
4. Paper feed motor: T1 [A] (

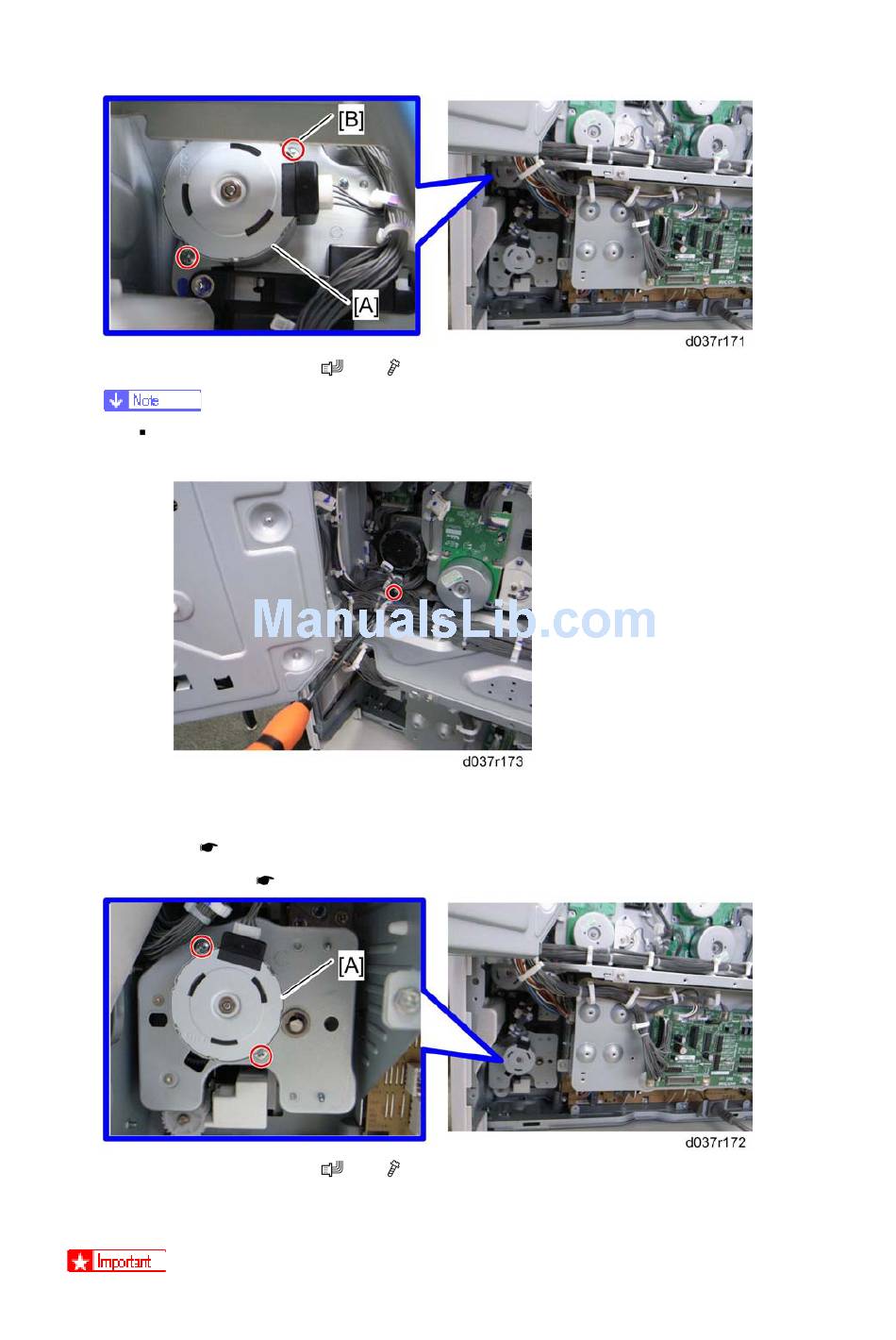

The picture below shows how to remove the screw [B] of the paper feed motor
T1.

4.10.4 PAPER FEED MOTOR: T2

1. Rear cover Section: Rear Cover)
2. Rear lower cover (
3. Paper feed motor: T2 [A] (
4.10.5 DRUM MOTOR: CMY
D037/D038/D040/D041
x 1, x 2)
Section:Rear Lower Cover)
x 1, x 2)
4-76 SM
