4.7 IMAGE CREATION
4.7.1 PCDU (PHOTO CONDUCTOR AND DEVELOPMENT UNIT)
Do not touch the OPC drum. Do not let metal objects touch the development
sleeve.

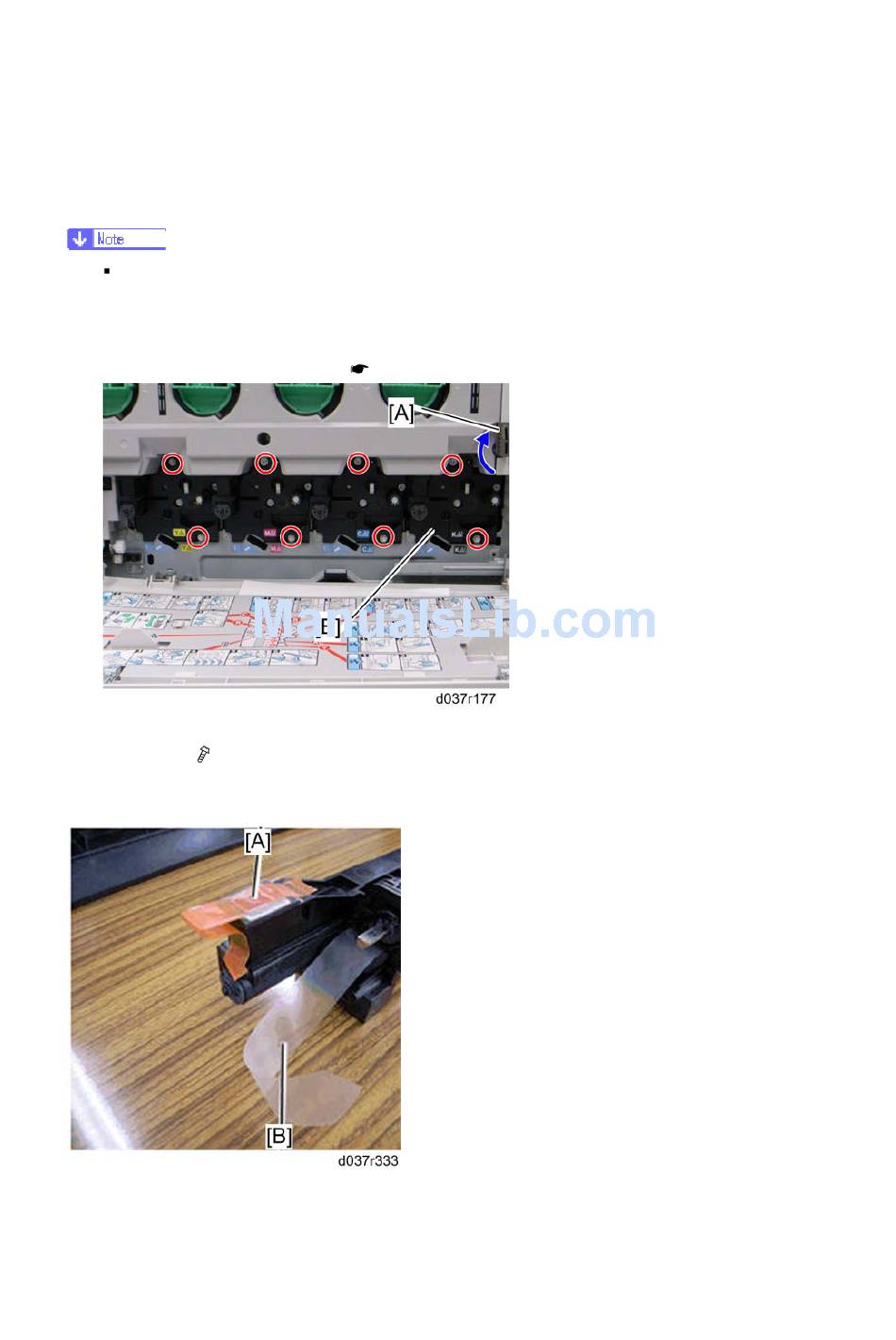

1. Open the front door.
2. PCDU toner collection bottle (
3. Turn the ITB lock lever [A] to the 'up' position.
4. PCDU [B] ( x 2 each)
When installing a new PCDU
Remove the cover [A] on the toner inlet and pull out the tape [B] from the new development
unit before installing a new PCDU in the machine.
D037/D038/D040/D041
Section: PCDU Toner Collection Bottle)
4-48 SM
