When Installing The Controller Box Fan - Ricoh D037 Service Manual

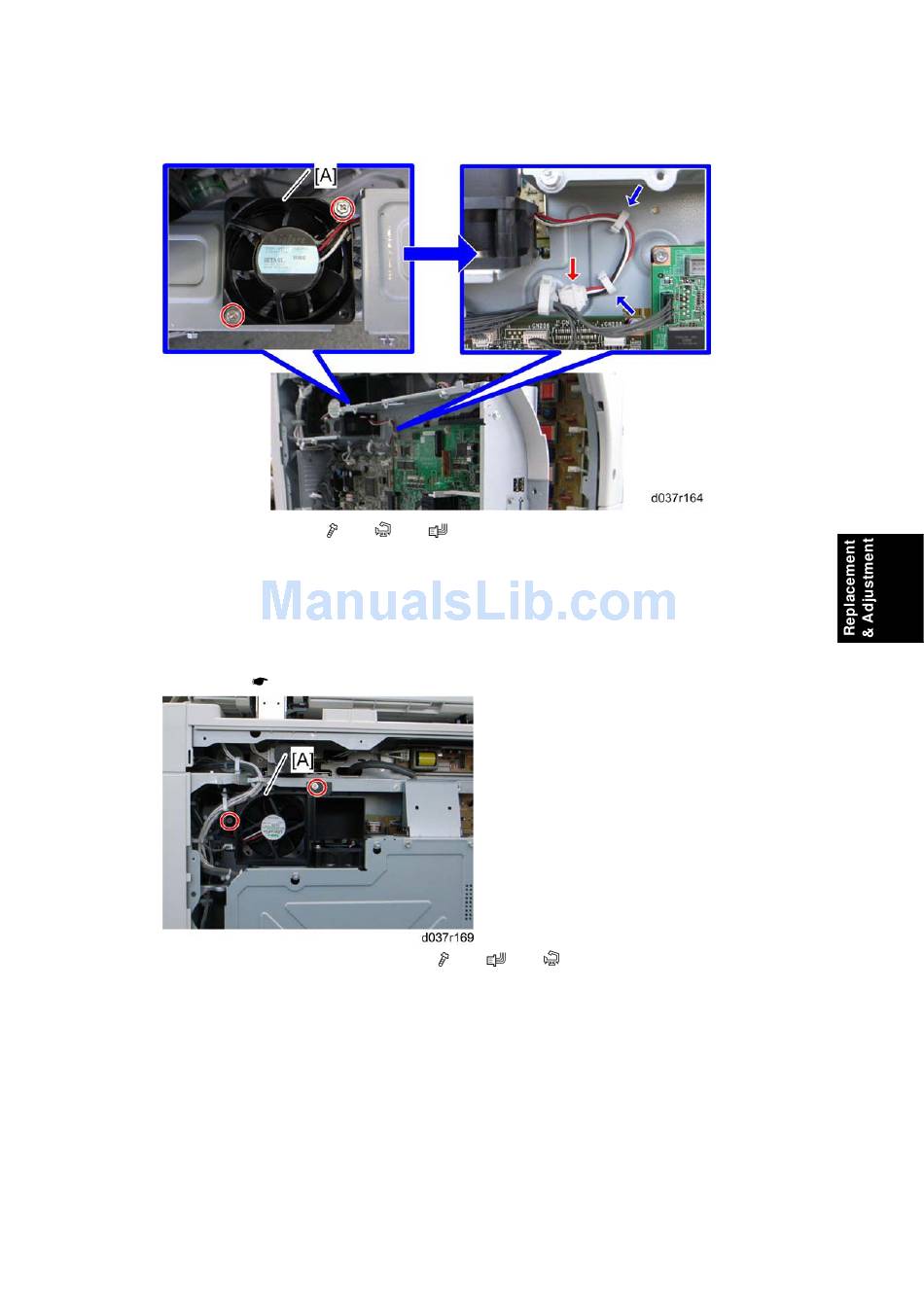

3. Controller box fan [A] (

When installing the controller box fan

Make sure that the controller box fan is installed with its decal facing upward.
4.15.7 FUSING REAR FAN
1. Rear cover ( Section: Rear Cover)
2. Fusing rear fan with the bracket [A] (
SM
x 2, x 2, x 1)
x 2, x 1,
4-131
Electrical Components
x 1)
