2.4 PAPER END DETECTION

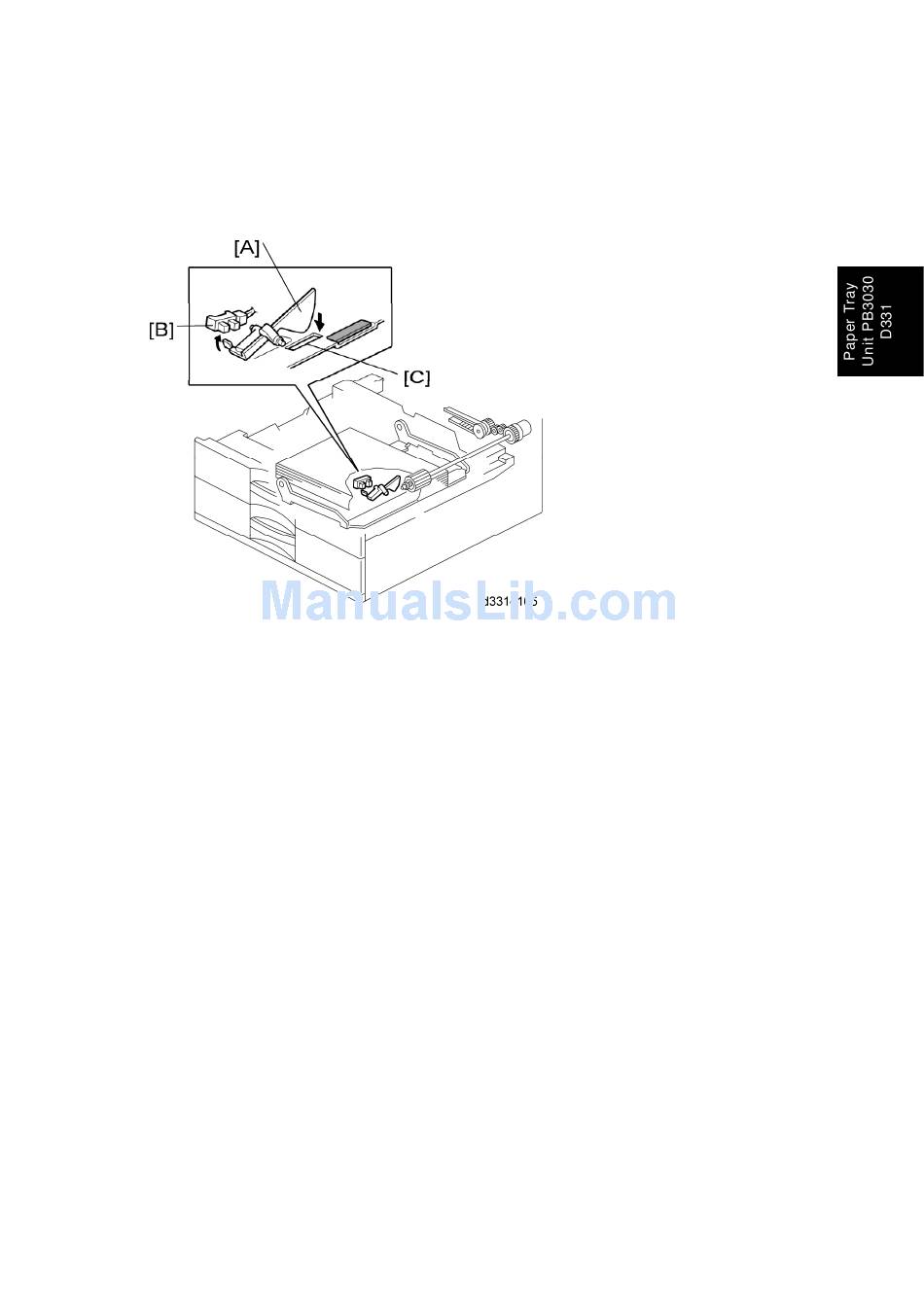

If there is some paper in the paper tray, the paper stack raises the paper end feeler [A] and

the paper end sensor [B] is deactivated.

When the paper tray runs out of paper, the paper end feeler drops into the cutout [C] in the

tray bottom plate and the paper end sensor is activated.

When the paper tray is drawn out with no paper in the tray, the shape of the paper end

feeler causes it to lift up.
