4.4 EXTERIOR COVERS

4.4.1 PCDU TONER COLLECTION BOTTLE
If you replace this toner collection bottle after the machine detects that it is full or near-full,
the machine automatically resets the PM counter for the PCDU toner collection bottle after
replacement.
But, if you replace a bottle that is not full or near-full, then you must reset the PM counter
for this unit. To do this, set SP 3902 019 to 1 before you start to work on the machine.

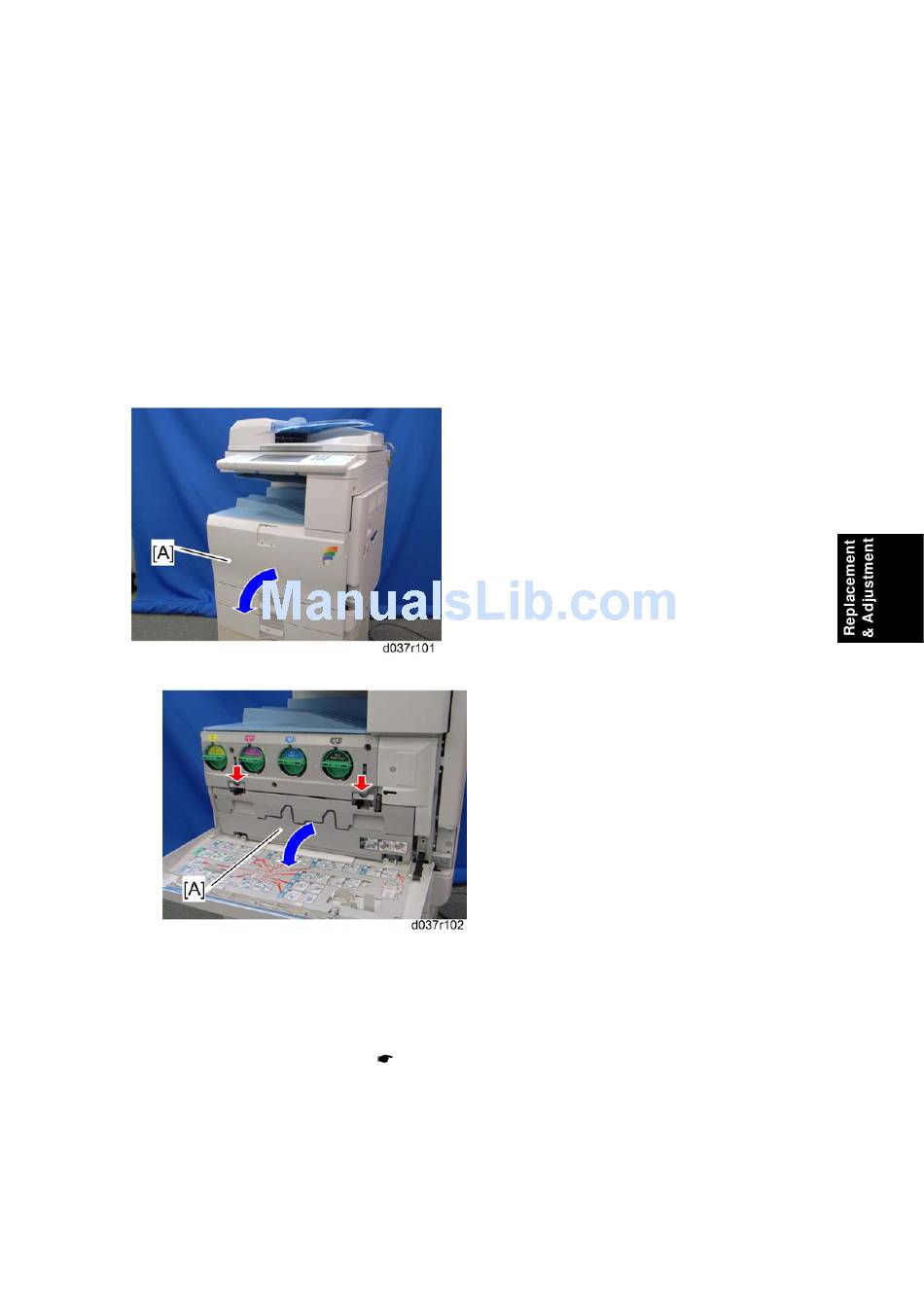

1. Open the front door [A].
2. PCDU toner collection bottle [A] (lock x 2)

4.4.2 FRONT DOOR

1. Open the front door.
2. PCDU toner collection bottle (
Unit))
