When installing the paper exit sensor

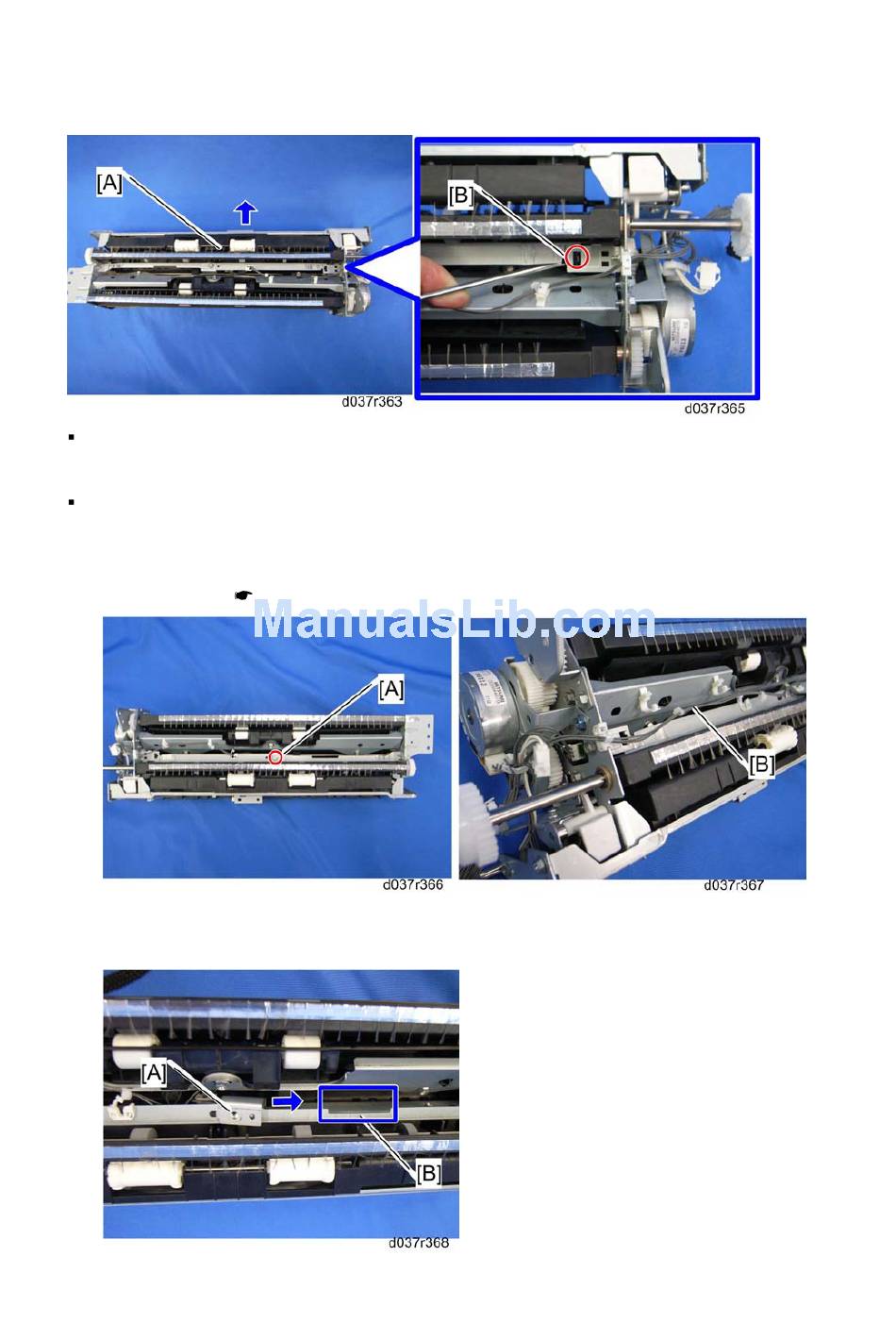

Stand the paper exit unit so that [A] is facing up. Otherwise, the paper exit sensor
feeler interrupts the installation of the paper exit sensor.
Insert the hook [B] first.
4.13.5 INVERTER SENSOR
1. Paper exit unit (
2. Remove the screw [A].
3. Release all clamps that clamp the harness [B].
D037/D038/D040/D041
Section: Paper Exit Unit)
