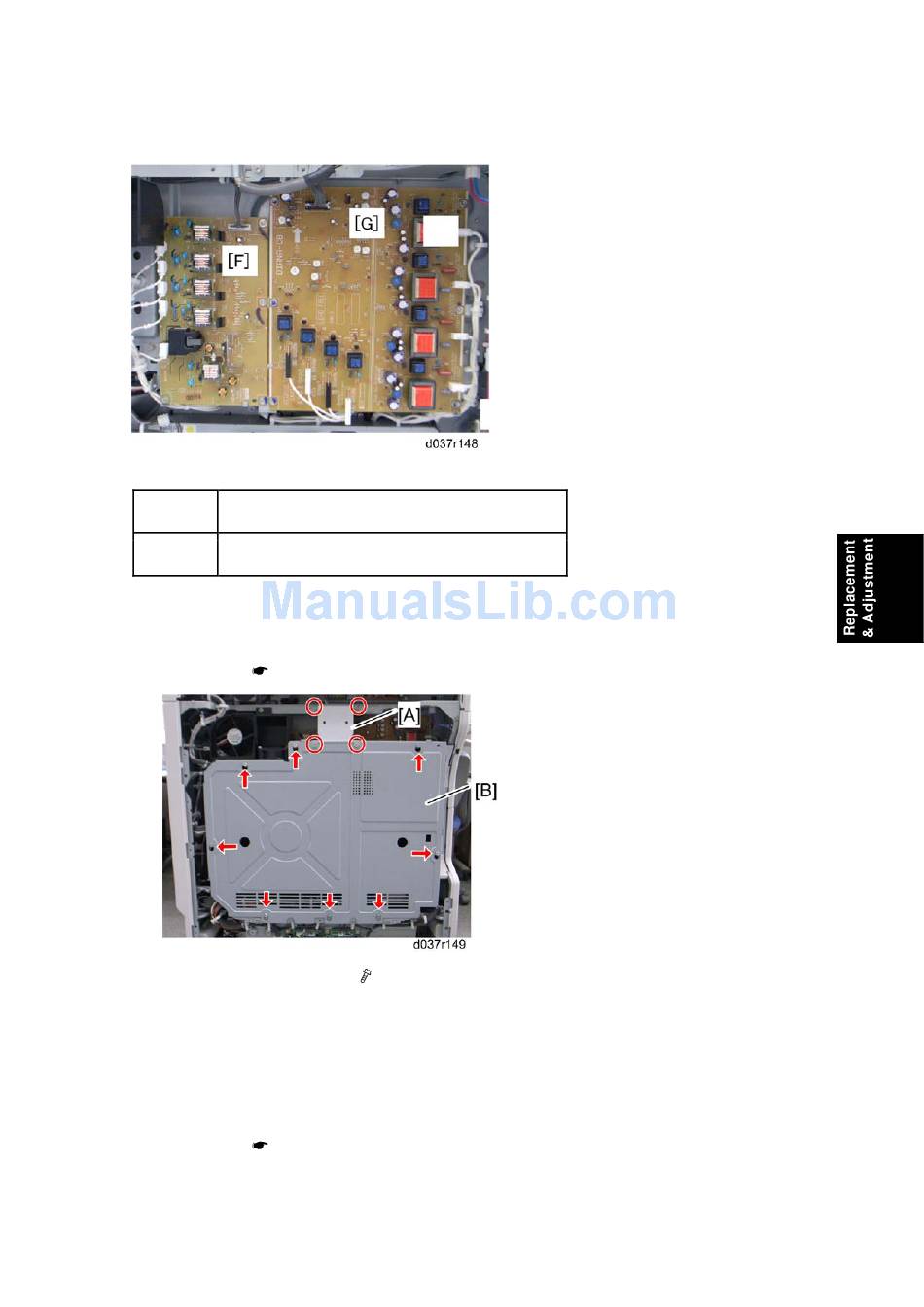

[F] HVPS: TTS Board
[G] HVPS: CB Board

4.15.2 CONTROLLER BOX COVER

1. Rear cover ( Section: Rear Cover)
2. Scanner cable bracket [A] (
3. Loosen the eight screws.
4. Slide up the controller box cover [B], and then remove it.
4.15.3 CONTROLLER BOX
Opening the controller box
1. Rear cover ( Section: Rear Cover)
SM
x 4)
4-127
Electrical Components
D037/D038/D040/D041
