Using the Debug Log

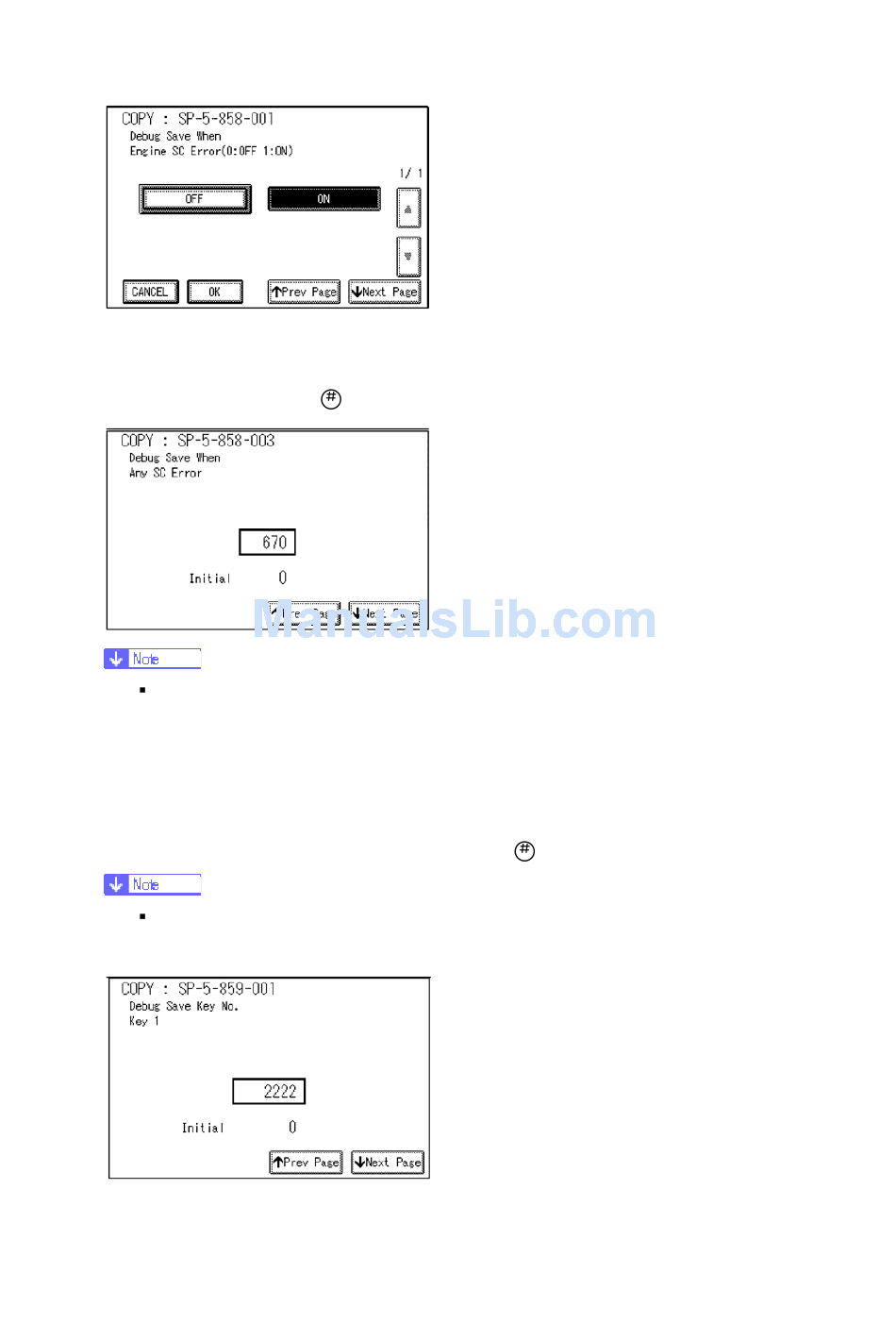

Example 2: To Specify an SC Code
Touch "3 Any SC Error", enter the 3-digit SC code number with the control panel
number keys. Then press
For details about SC code numbers, please refer to the SC tables in Section 4.
"Troubleshooting".
6. Select one or more memory modules for reading and recording debug information.
Touch "5859".
Under "5859" press the necessary key item for the module that you want to record.
Enter the appropriate 4-digit number. Then press
Refer to the two tables below for the 4-digit numbers to enter for each key.
The example below shows "Key 1" with "2222" entered.
The following keys can be set with the corresponding numbers. (The initials in
parentheses indicate the names of the modules.)
D037/D038/D040/D041
. This example shows an entry for SC670.
