Exposure Lamp Stabilizer - Ricoh D037 Service Manual

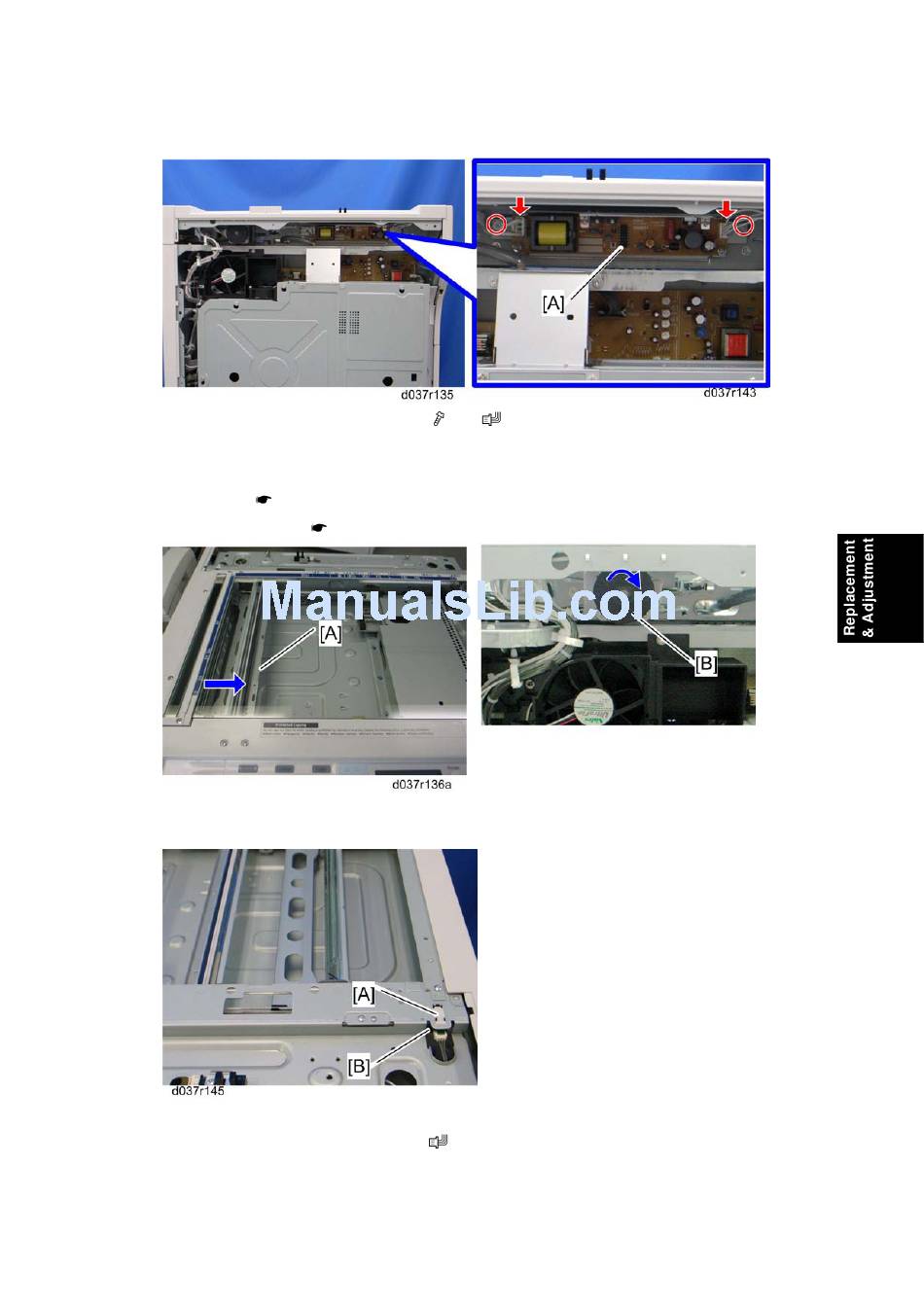

2. Exposure lamp stabilizer bracket [A] (
4.5.7 SCANNER HP SENSOR
1. Rear Cover ( Section: Rear Cover)
2. Scanner rear cover (
3. Move the 1st scanner carriage [A] to the right side by rotating the scanner motor [B]
clockwise.
4. Remove the mylar [A].
5. Remove the scanner HP sensor [B] (
SM
x 2,
Section: Exposure Lamp)
x 1, hooks).
4-33
x 2)
D037/D038/D040/D041
Scanner Unit
