2.7 SIDE AND END FENCES

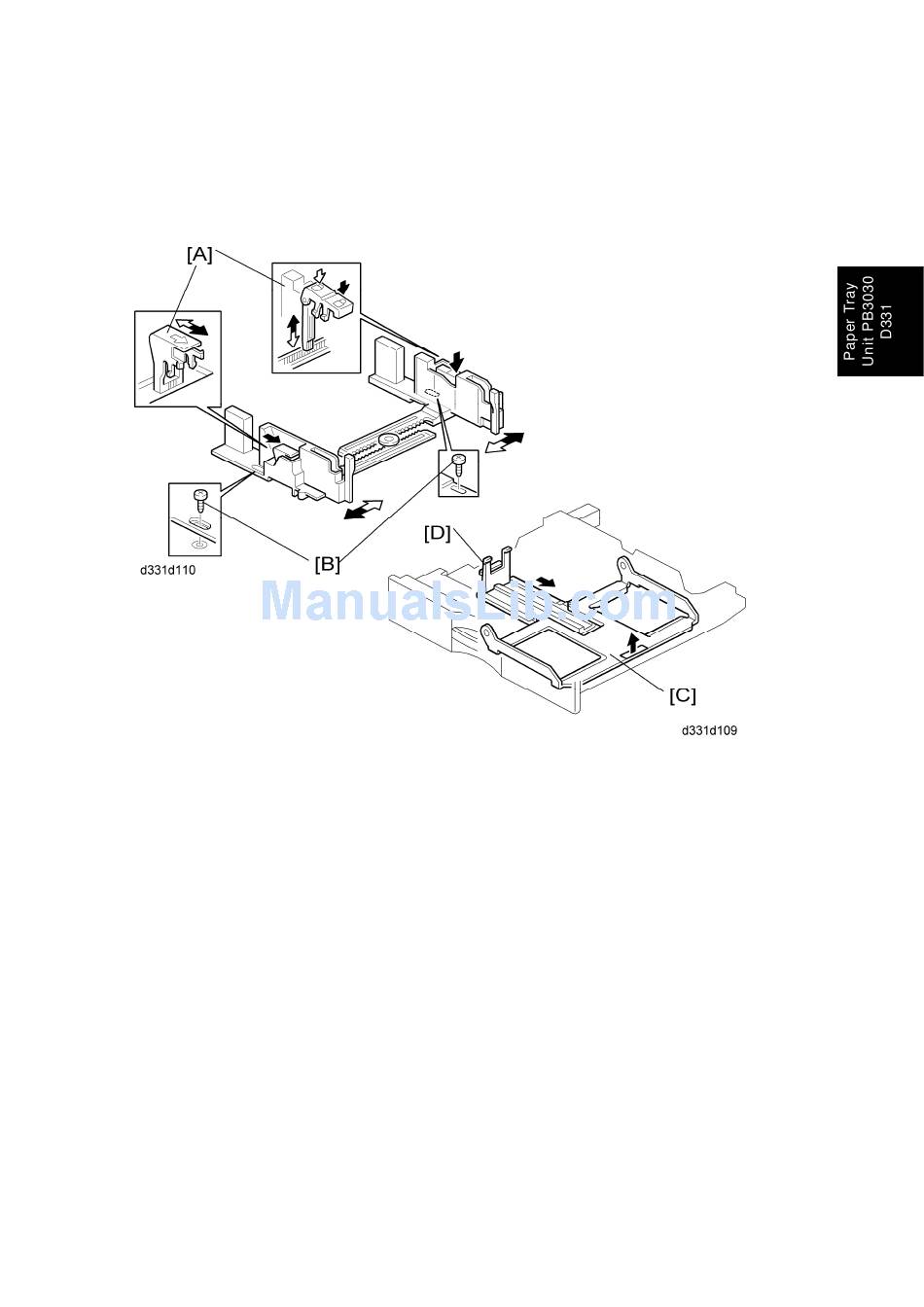

If the tray is full of paper and it is pushed in strongly, the fences may deform or bend. This

may cause the paper to skew or the side-to-side registration to be incorrect. To correct this,

each side fence has a stopper [A] attached to it. Each side fence can be secured with a

screw [B], for customers who do not want to change the paper size.

As the amount of paper in the tray decreases, the bottom plate [C] lifts up gradually. The

end fence [D] is connected to the bottom plate. When the tray bottom plate rises, the end

fence moves forward and pushes the back of the paper stack to keep it squared up.
