2. DETAILED DESCRIPTIONS

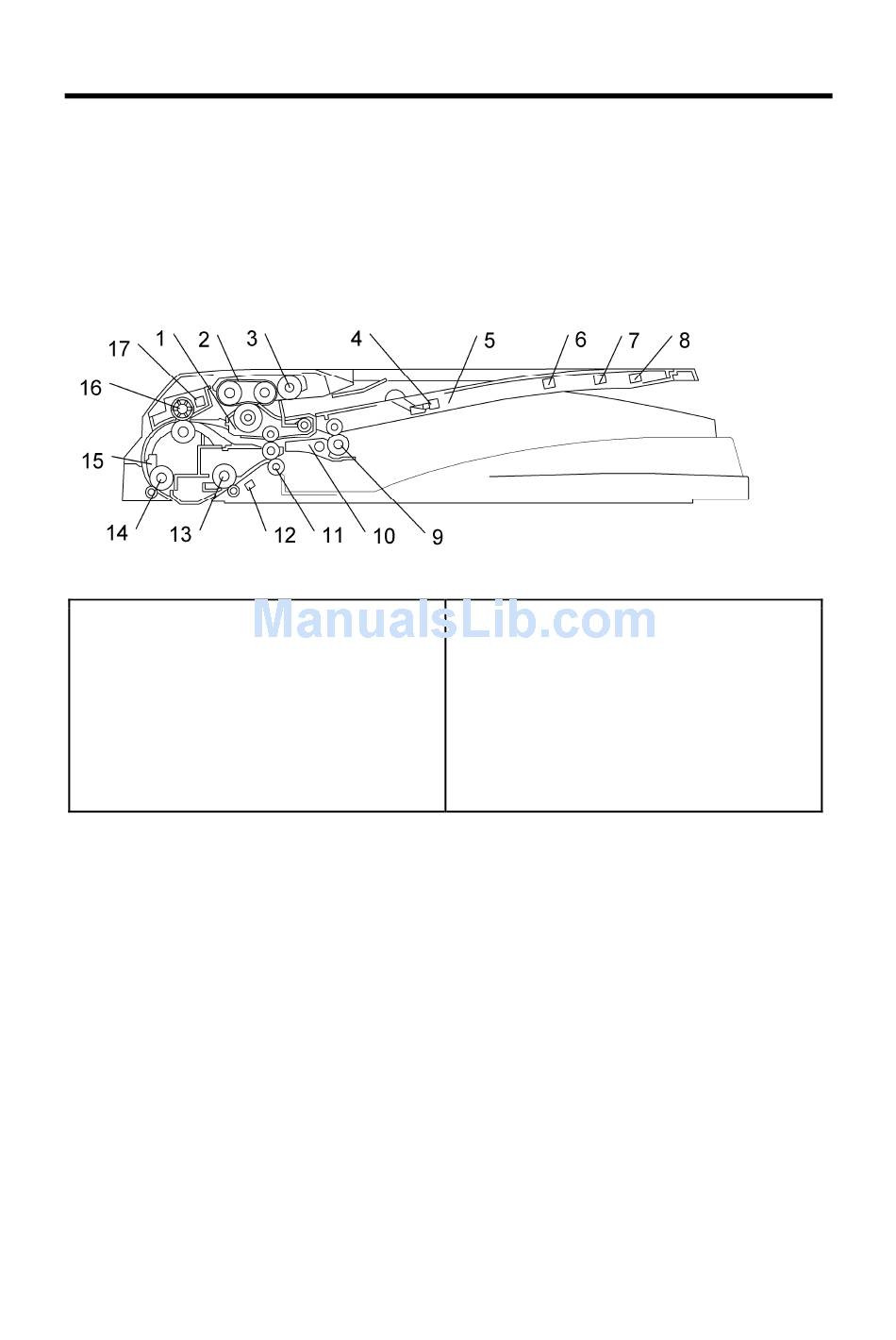

2.1 COMPONENT LAYOUT

1. Separation Roller

2. Paper Feed Belt

3. Pick-up Roller

4. Original Trailing Edge Sensor

5. Original Tray

6. Original Length Sensor 1

7. Original Length Sensor 2

8. Original Length Sensor 3

9. Inverter Roller

10. Junction Gate

11. Exit Roller

12. Original Exit Sensor

13. Transport Roller

14. Registration Roller

15. Registration Sensor

16. Skew Correction Roller

17. Skew Correction Sensor
