4.8 IMAGE TRANSFER

4.8.1 ITB CLEANING UNIT
If you replace the cleaning unit or toner collection bottle after the machine detects that it is
full or near-full, the machine automatically resets the PM counter for the bottle after
replacement.
But, if you replace a bottle that is not full or near-full, then you must reset the PM counter
for this unit. To do this, set SPs 3902-017 and -020 to 1 before you turn off the power
switch.
If you do this, then the machine will reset the PM counter for the units automatically, after
you turn the power on again.
SP 3902-017 is for the ITB cleaning unit and SP 3902-020 is for the ITB toner collection
bottle.
1. Left cover ( Section: Left Cover)

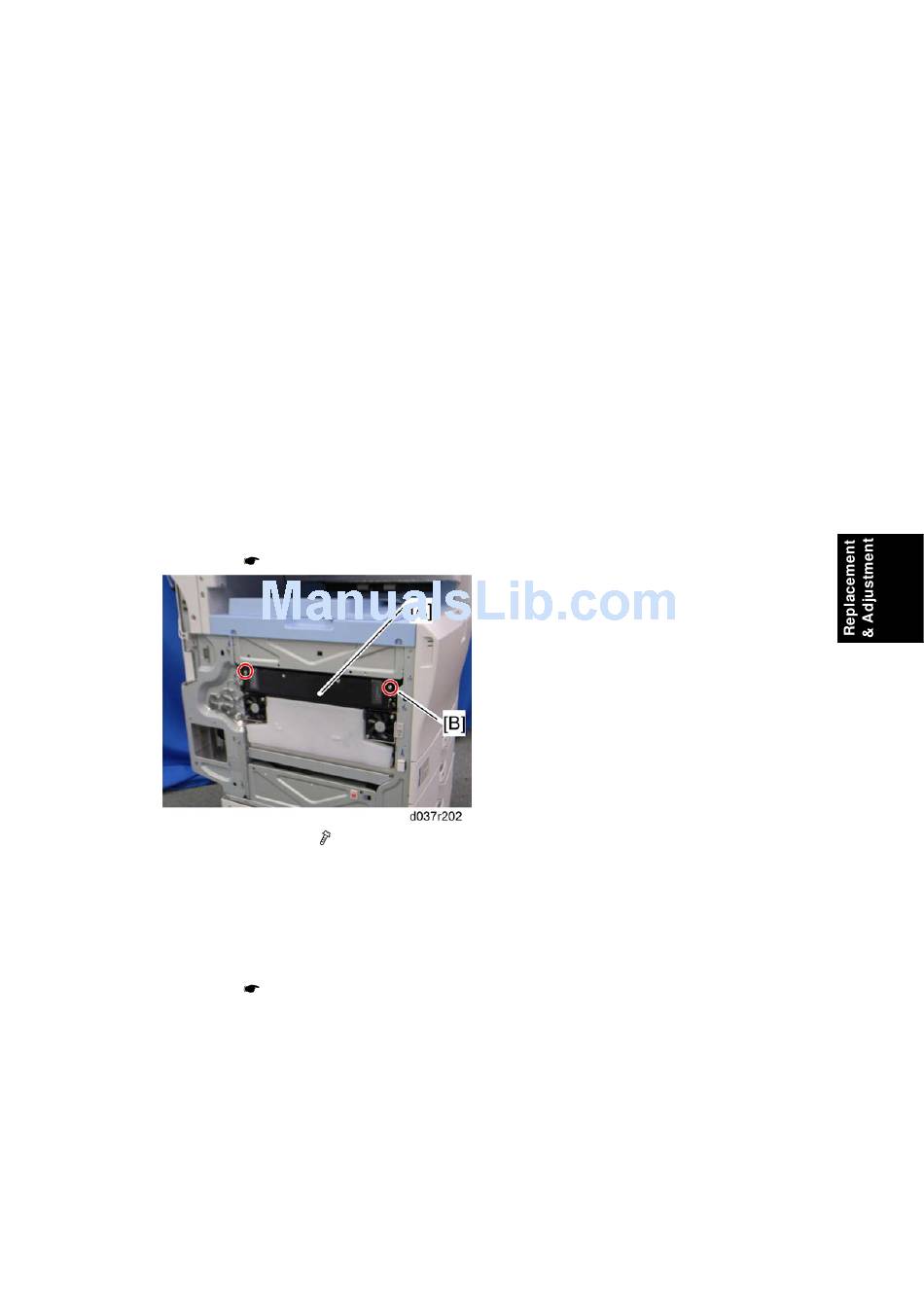

2. ITB cleaning unit [A] (
When installing the ITB cleaning unit
Secure the front side [B] first with a screw. This [B] is the positioning screw.
4.8.2 ITB TONER COLLECTION BOTTLE FULL SENSOR
1. Left cover ( Section: Left Cover)
SM
x 2)
4-59
Image Transfer
D037/D038/D040/D041
