2.5 PAPER HEIGHT DETECTION

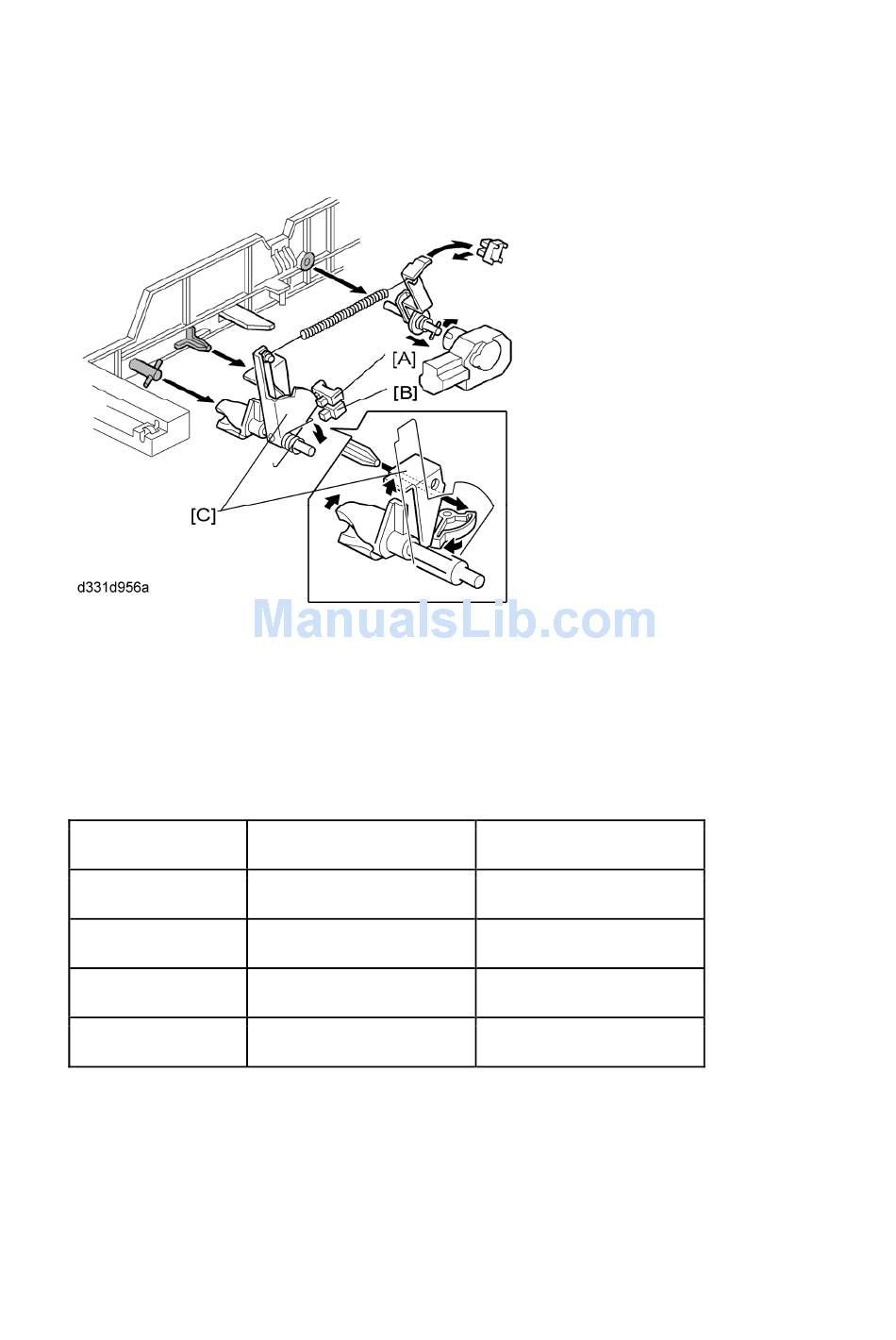

The amount of paper in the tray is detected by the combination of on/off signals from two
paper height sensors [A] and [B].
When the amount of paper decreases, the bottom plate pressure lever [C] moves the
actuator up.
The following combination of sensor signals is sent to the copier/printer.
Amount of Paper
Near End
30%
70%
100%
When the tray contains paper of a small width, the paper feed pressure may become too
low when the thickness of the remaining stack of paper has decreased. The lift motor
rotates forward 300 ms after the sensor detects a certain amount of paper remaining in the
tray to increase paper feed pressure, simulating the pressure generated by a full tray.
D331
Paper Height Sensor 1
OFF
ON
ON
OFF
Paper Height Sensor 2
ON
ON
OFF
OFF
