Punch Unit (D390)

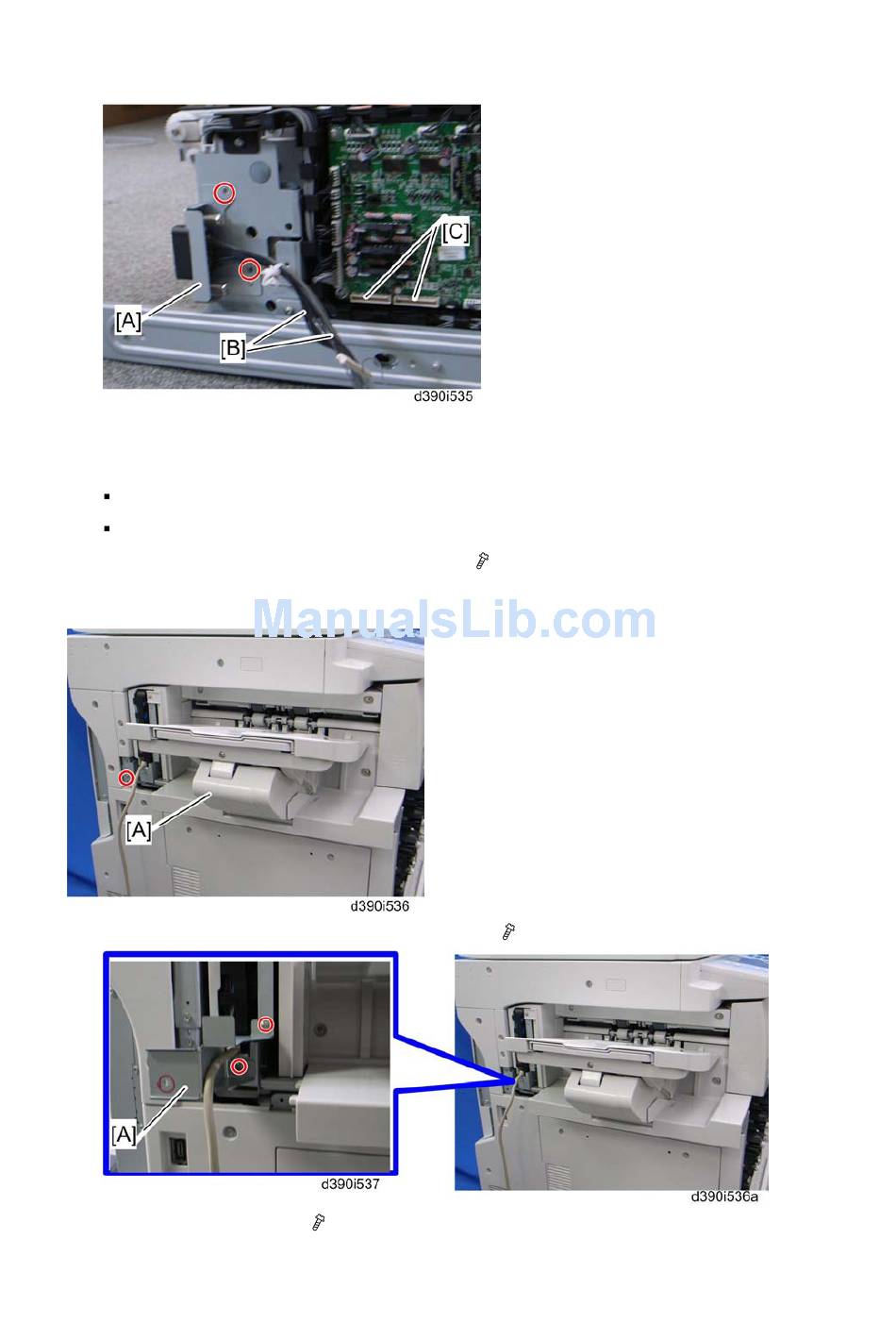

2. Attach the drawer connector [A] to the rear bracket of the finisher.
3. Connect the harnesses [B] to the connectors [C] on the main board.
Black harness connector to CN16
Gray harness connector to CN17
4. Reinstall the rear cover (removed in step 1) (

Installing the Internal Finisher

1. Install the internal finisher [A] in the mainframe (
2. Remove the bracket [A] (
D037/D038/D040/D041
x 2).
x 2).
2-56
x 1).
SM
