4.

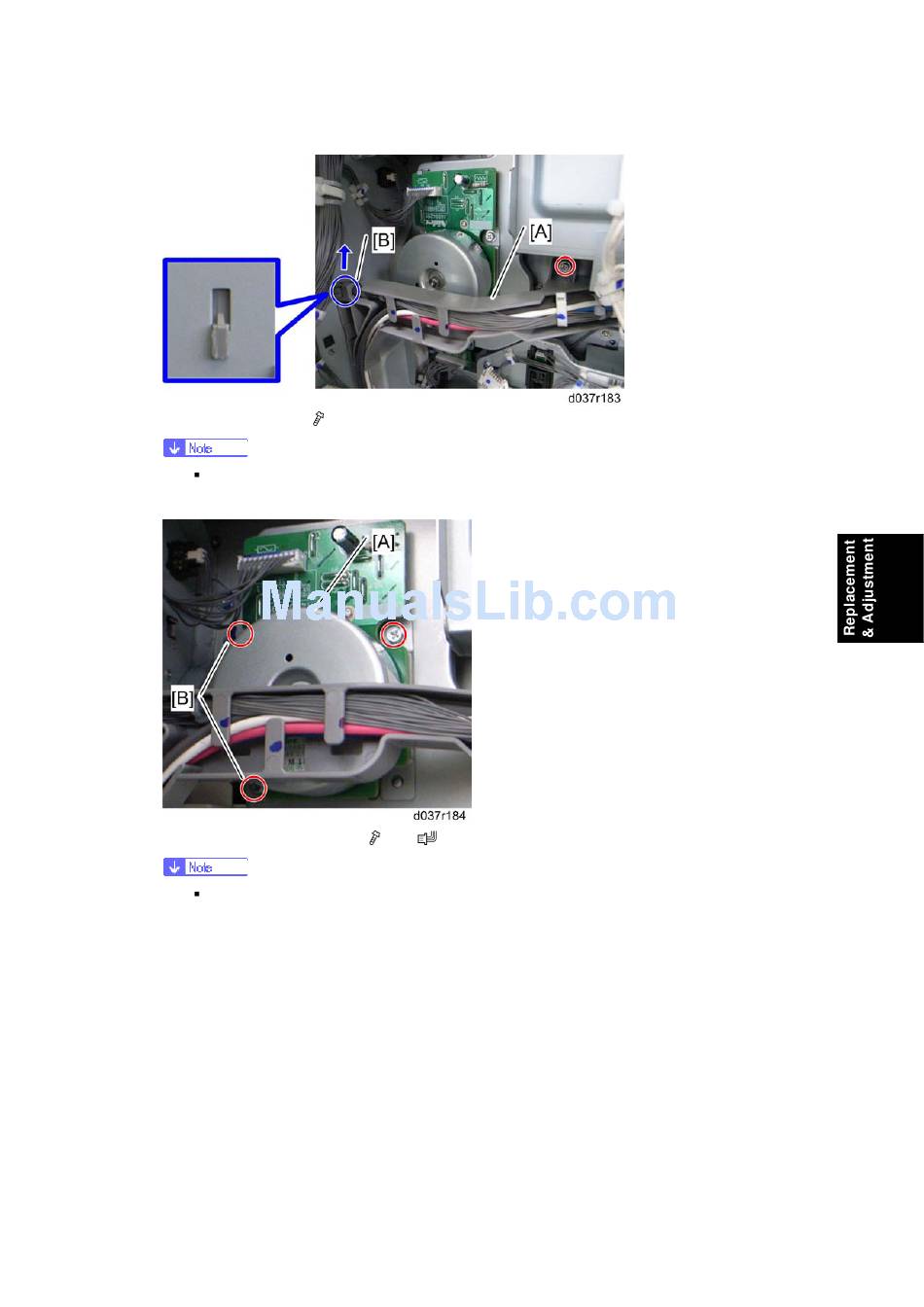

Loosen the stay [A] (
The hook [B] is installed as shown above. Do not pull the stay by force, or the
hook might be broken.
5.
Fusing/paper exit motor [A] (
The picture below shows how to remove the screw [B] of the fusing/paper exit
motor.
SM
x 1, hook [B] x 1)
x 3,
x 1)
4-79
Drive Unit
D037/D038/D040/D041
