1.3 SENSORS AND BOARD

Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

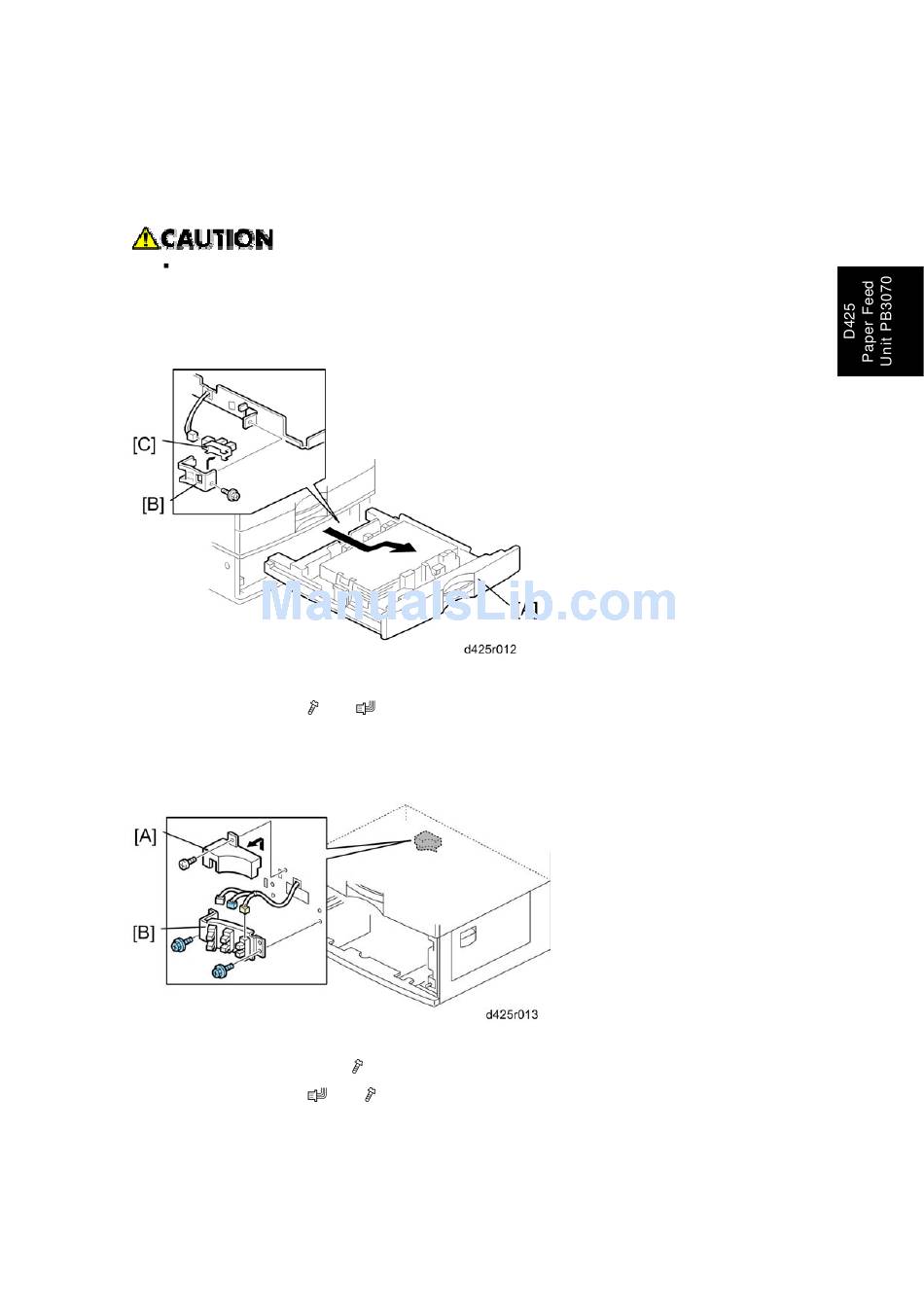

1.3.1 PAPER END SENSOR

1. Pull out the tray [A]
2. Sensor bracket [B] (
3. Paper end sensor [C] (hooks)

1.3.2 PAPER SIZE SENSORS

1. Pull out the tray.
2. Sensor bracket cover [A] (
3. Sensor bracket [B] (
4. Paper size sensor (hooks)
SM
x 1, x 1)
x 1)
x 3, x 2)
5
Sensors and Board
D425
