Front Scanner Wire - Ricoh D037 Service Manual

Scanner Unit

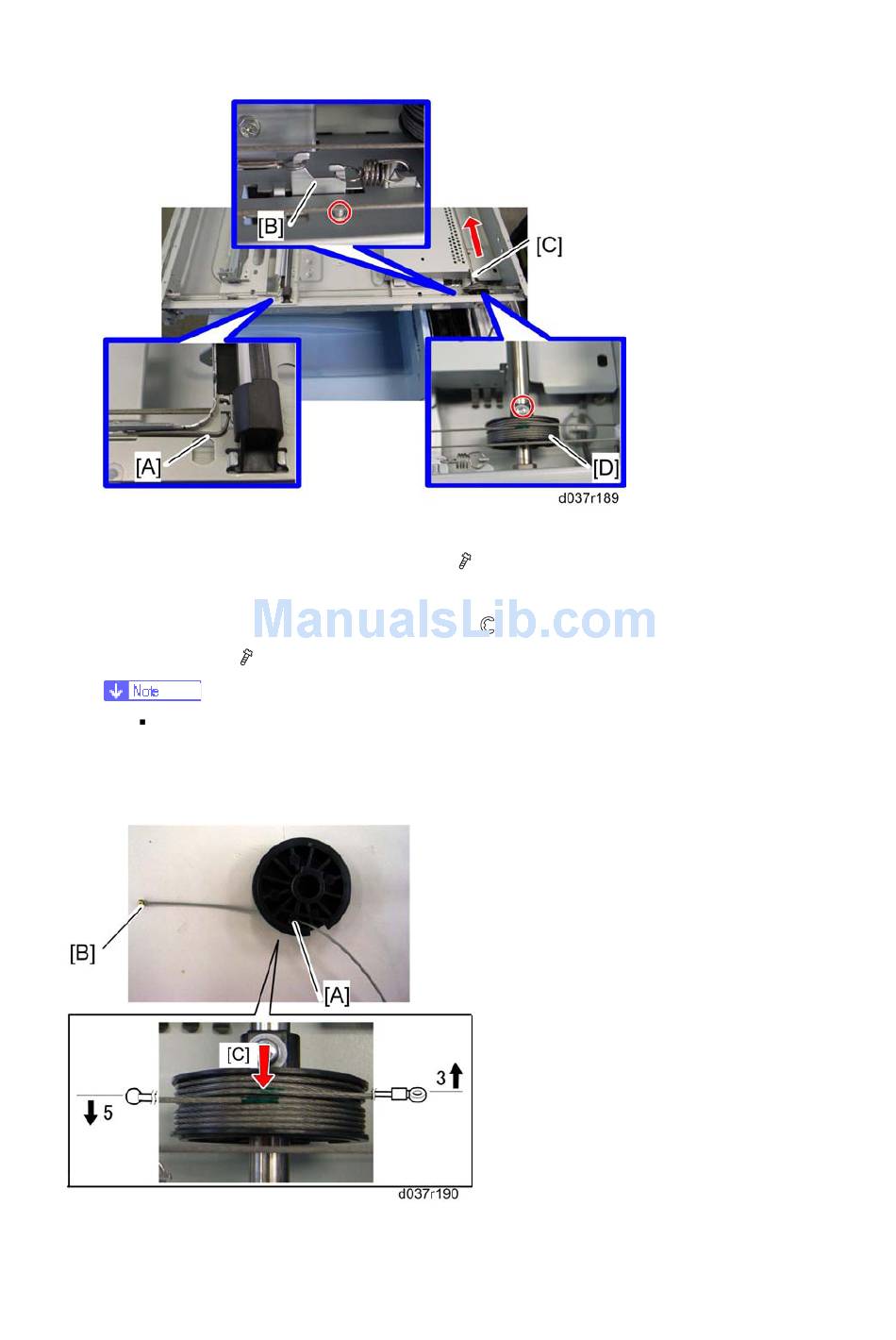

11. Front scanner wire clamp [A]
12. Loosen the front scanner wire bracket [B] (

13. Front scanner wire

14. Move the shaft [C] in the red arrow direction (
drive pulley [D] (
When removing the rear scanner wire, remove the e-ring at the rear side of
the shaft.
Reinstalling the Front Scanner Wire
1. Position the center ball [A] in the middle of the forked holder.
2. Pass the right end (with the ball) [B] through the square hole. Pass the left end (with
D037/D038/D040/D041
x 1).
x 1)
x 1: at front), and remove the scanner
4-36 SM
