Key Counter Interface Unit

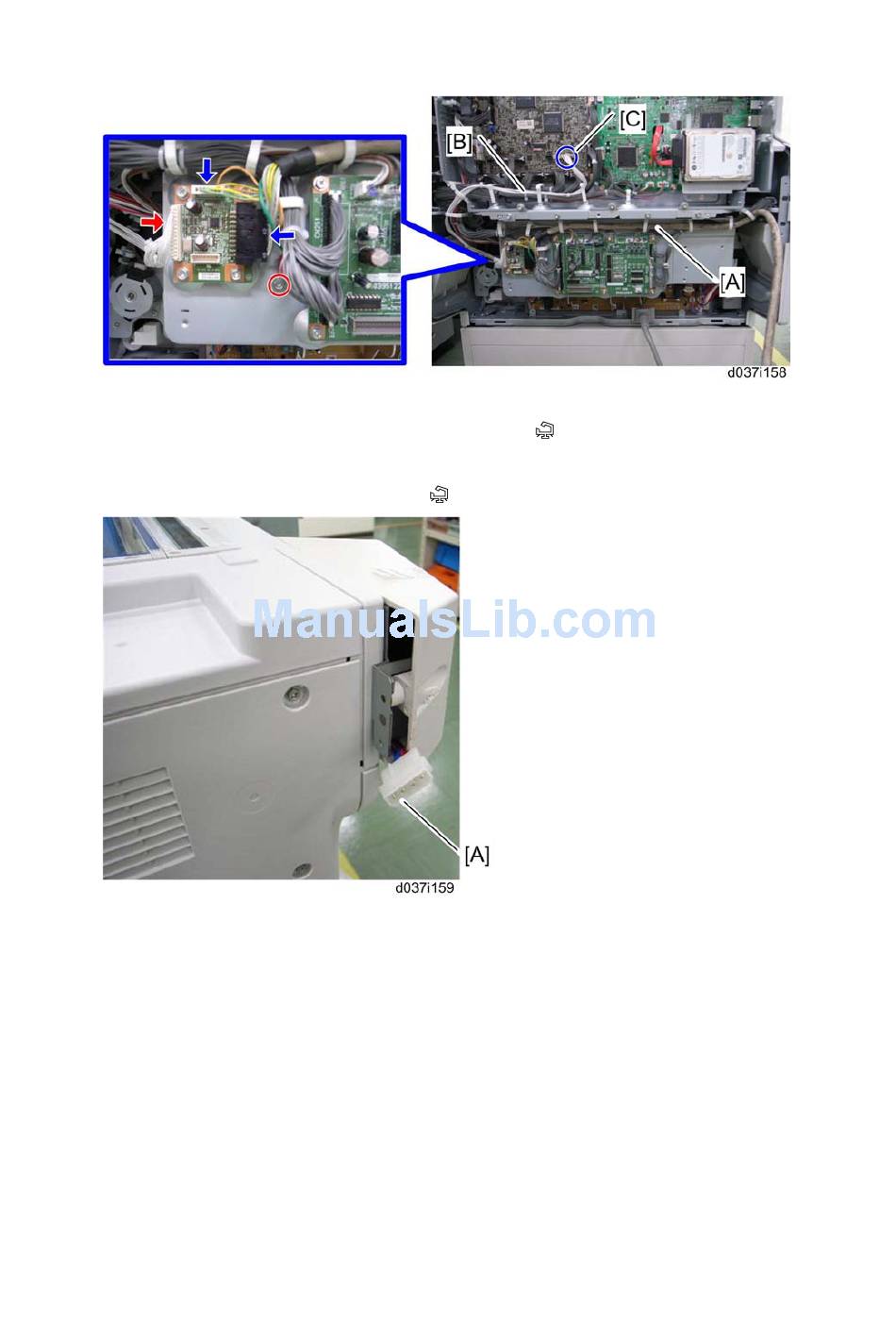

6. Connect and route the key counter cable [A] to the connector on the key counter
interface board as shown above (ground screw x 1,
7. Connect and route the harness [B] to the connector on the key counter interface board
and connector CN216 [C] on the BCU (
8. Pull the key counter cable through from the cutout and connect it to the connector [A]
of the key counter unit.
9. Reassemble the machine.
