Data Word Formats
Reserved
SP7 FSERR Int Status
SP7 DERRB Int Status
SP7 DERRA Int Status
SP6 DERRB Int Status
SP6 DERRA Int Status
SP5 DERRB Int Status
SP5 DERRA Int Status
SP4 DERRB Int Status
SP4 DERRA Int Status

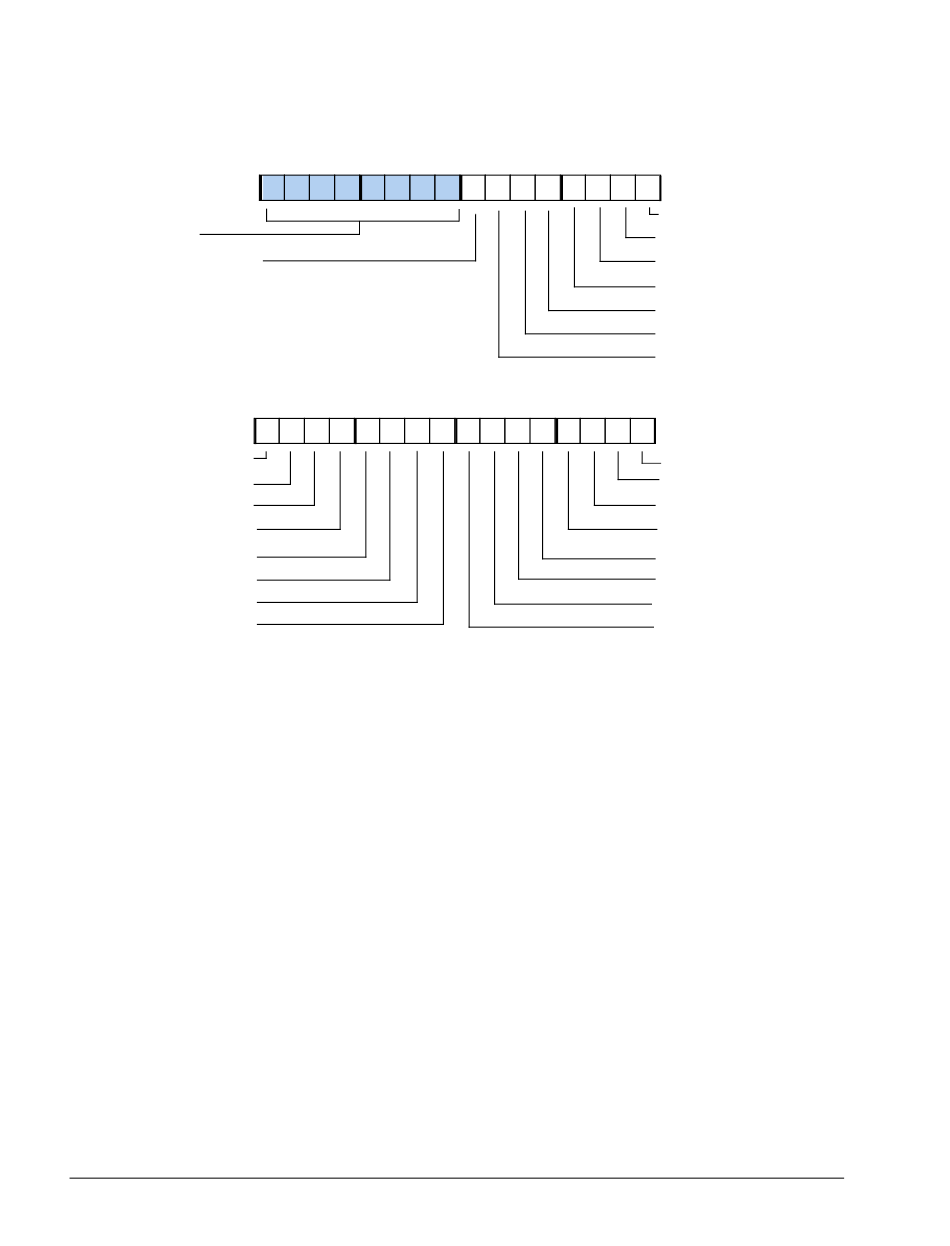

Figure 5-9. SPERRSTAT Register
The value of
SLEN
= serial word length – 1
SLEN
Do not set the
right-justified in the receive and transmit buffers, residing in the least sig-
nificant (LSB) bit positions.
Although the word lengths can be 3 to 32 bits, transmitting or receiving
words smaller than 7 bits at one-quarter the full clock rate of the SPORT
may cause incorrect operation when DMA chaining is enabled. Chaining
disables the processor's internal I/O bus for several cycles while the new
transfer control block (TCB) parameters are being loaded. Receive data
may be lost (for example, overwritten) during this period.
