Serial Port Registers
SPCTL0 (0xC00) SPCTL1 (0xC01)
SPCTL2 (0x400) SPCTL3 (0x401)
SPCTL4 (0x800) SPCTL5 (0x801)
SPCTL6 (0x4800) SPCTL7 (0x4801)
DIFS
Data Independent TX FS
(if SPTRAN=1) or RX FS (if
SPTRAN=0)
1=Data independent
0=Data dependent
IFS
Internally-Generated FS
1=Internal
0=External
FSR
Frame Sync Requirement
1=Frame sync required
0=Frame sync not required
CKRE
Clock Edge for Data Frame Sync
Sampling or Driving
1=Rising edge
0=Falling edge
OP MODE
SPORT Operation Mode
0=DSP serial mode/multichannel mode,
this bit must be set to 0

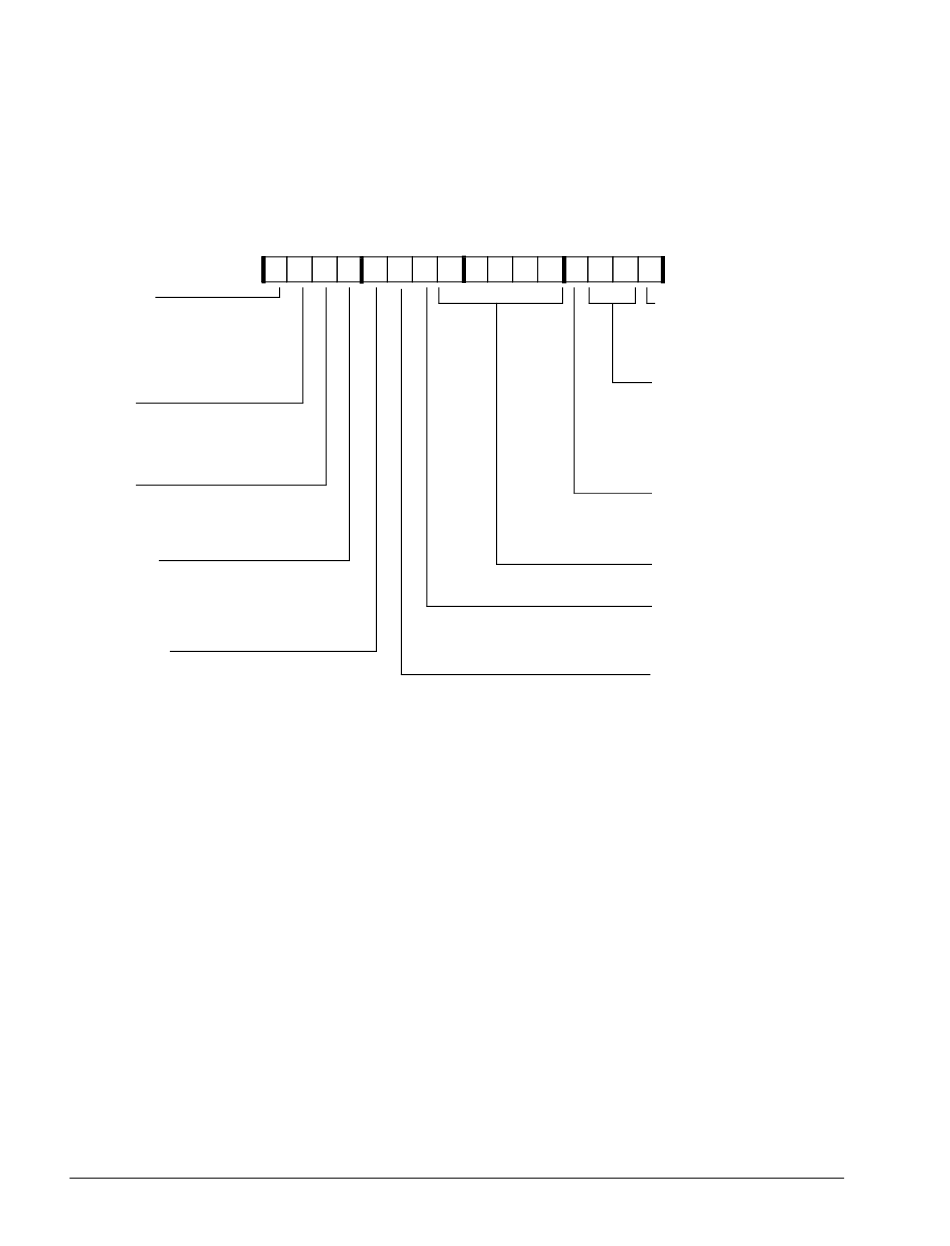

Figure A-14. SPCTLx Register (Bits 0–15) for Standard DSP Serial Mode
A-32
15 14 13 12 11 10 9 8
0 0 0 0 0 0 0 0
ADSP-21368 SHARC Processor Hardware Reference
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 0
SPEN_A
SPORT Enable A
1=Enable
0=Disable
DTYPE
Data Type
00=Right-justify
01=Right-justify, sign extend MS
10=Compand mu-law
11=Compand A-law
LSBF
Least Significant Bit Format
1=LSB first
0=MSB first
SLEN
Serial Word Length=1
PACK
16/32 Packing
1=Packing
0=No packing
ICLK
Internally-Generated
SPORTx_CLK
1=Internal clock
0=External clock
