Check The External Starting Socket - Manitowoc Grove GMK 4100L-1 Maintenance Manual

7.17.5
Accessories
Checking
Maintenance manual
GMK 4100L-1

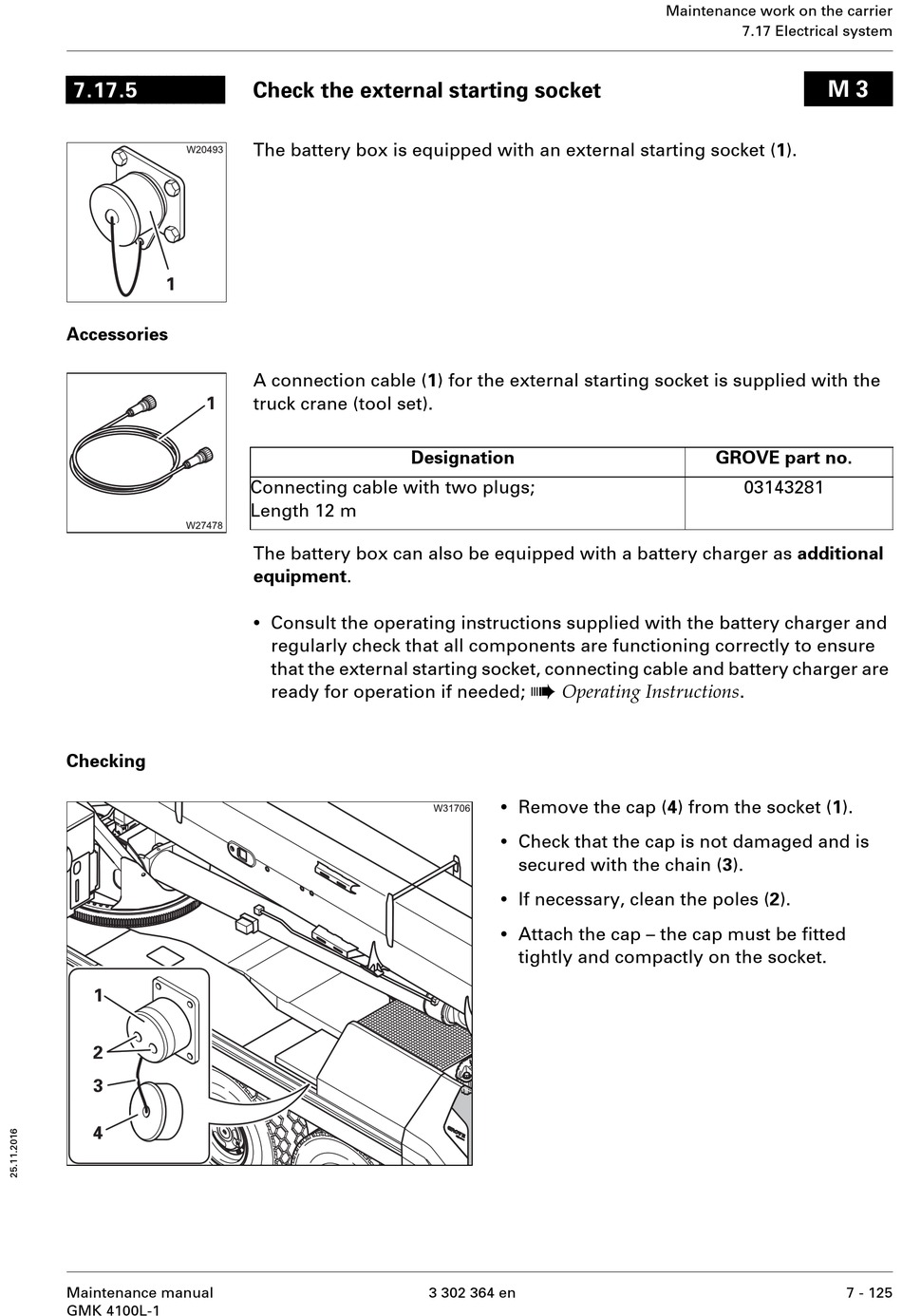

Check the external starting socket

The battery box is equipped with an external starting socket (1).
A connection cable (1) for the external starting socket is supplied with the
truck crane (tool set).
Designation
Connecting cable with two plugs;
Length 12 m
The battery box can also be equipped with a battery charger as additional
equipment.
•
Consult the operating instructions supplied with the battery charger and
regularly check that all components are functioning correctly to ensure
that the external starting socket, connecting cable and battery charger are
ready for operation if needed;
à
Operating Instructions .
•
Remove the cap (4) from the socket (1).
•
Check that the cap is not damaged and is
secured with the chain (3).
•
If necessary, clean the poles (2).
•
Attach the cap – the cap must be fitted
tightly and compactly on the socket.
3 302 364 en
Maintenance work on the carrier
7.17 Electrical system
M 3
GROVE part no.
03143281
7 - 125
