Operating elements for driving
3.2 Brief description of the operating elements
3.2.16
3 - 72

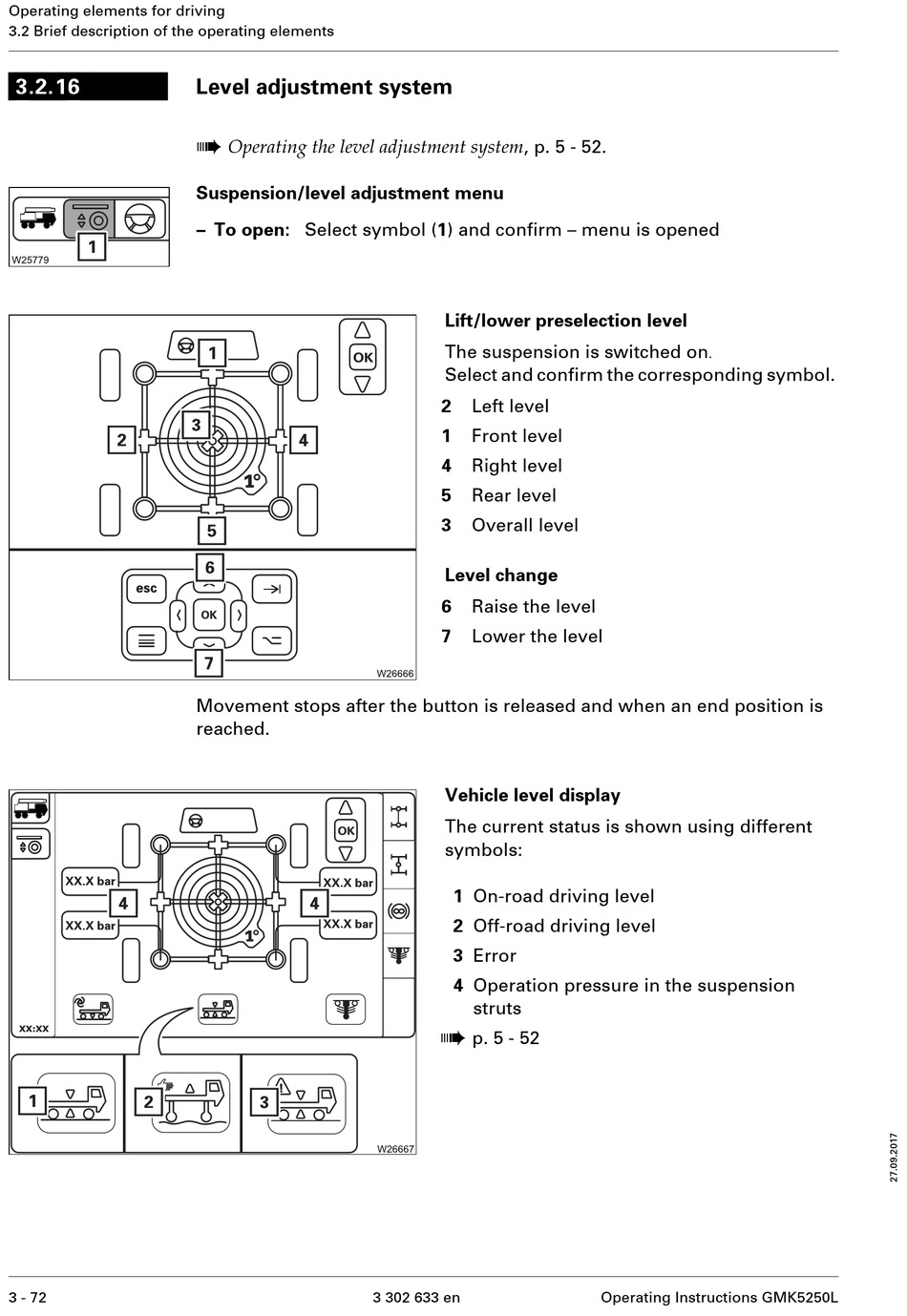

Level adjustment system

à
Operating the level adjustment system , p. 5 - 52.
Suspension/level adjustment menu
– To open: Select symbol (1) and confirm – menu is opened
Movement stops after the button is released and when an end position is
reached.
Lift/lower preselection level
The suspension is switched on
Select and confirm the corresponding symbol.
2 Left level
1 Front level
4 Right level
5 Rear level
3 Overall level
Level change
6 Raise the level
7 Lower the level
Vehicle level display
The current status is shown using different
symbols:
1 On-road driving level
2 Off-road driving level
3 Error
4 Operation pressure in the suspension
struts
à
p. 5 - 52
3 302 633 en
.
Operating Instructions GMK5250L
