Crane operation
10.7 Working range limiter
10.7.4
Limit values
10 - 140

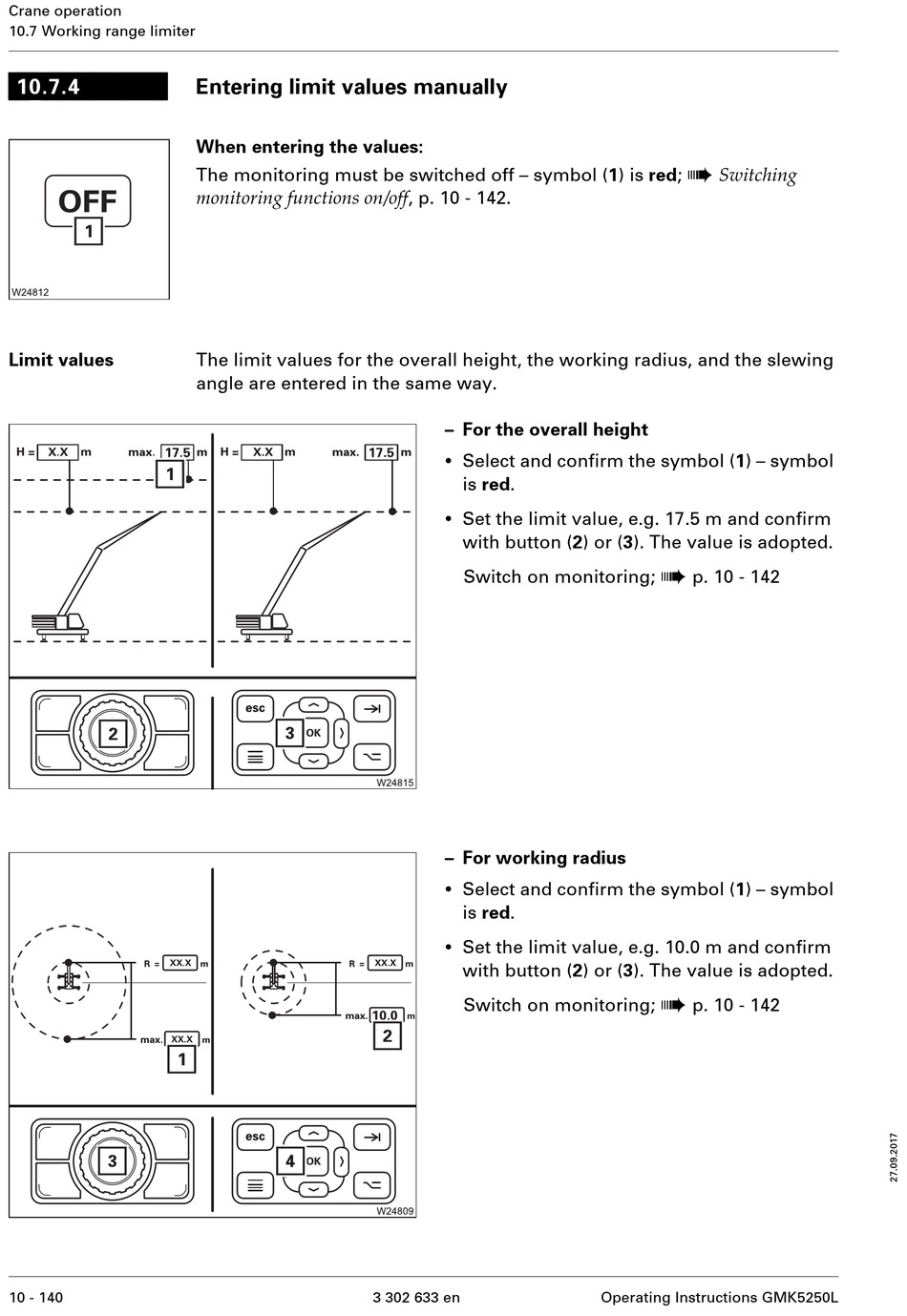

Entering limit values manually

When entering the values:
The monitoring must be switched off – symbol (1) is red;
monitoring functions on/off , p. 10 - 142.
The limit values for the overall height, the working radius, and the slewing
angle are entered in the same way.
– For the overall height
•
Select and confirm the symbol (1) – symbol
is red.
•
Set the limit value, e.g. 17.5 m and confirm
with button (2) or (3). The value is adopted.
Switch on monitoring;
– For working radius
•
Select and confirm the symbol (1) – symbol
is red.
•
Set the limit value, e.g. 10.0 m and confirm
with button (2) or (3). The value is adopted.
Switch on monitoring;
3 302 633 en
à
Switching
à
p. 10 - 142
à
p. 10 - 142
