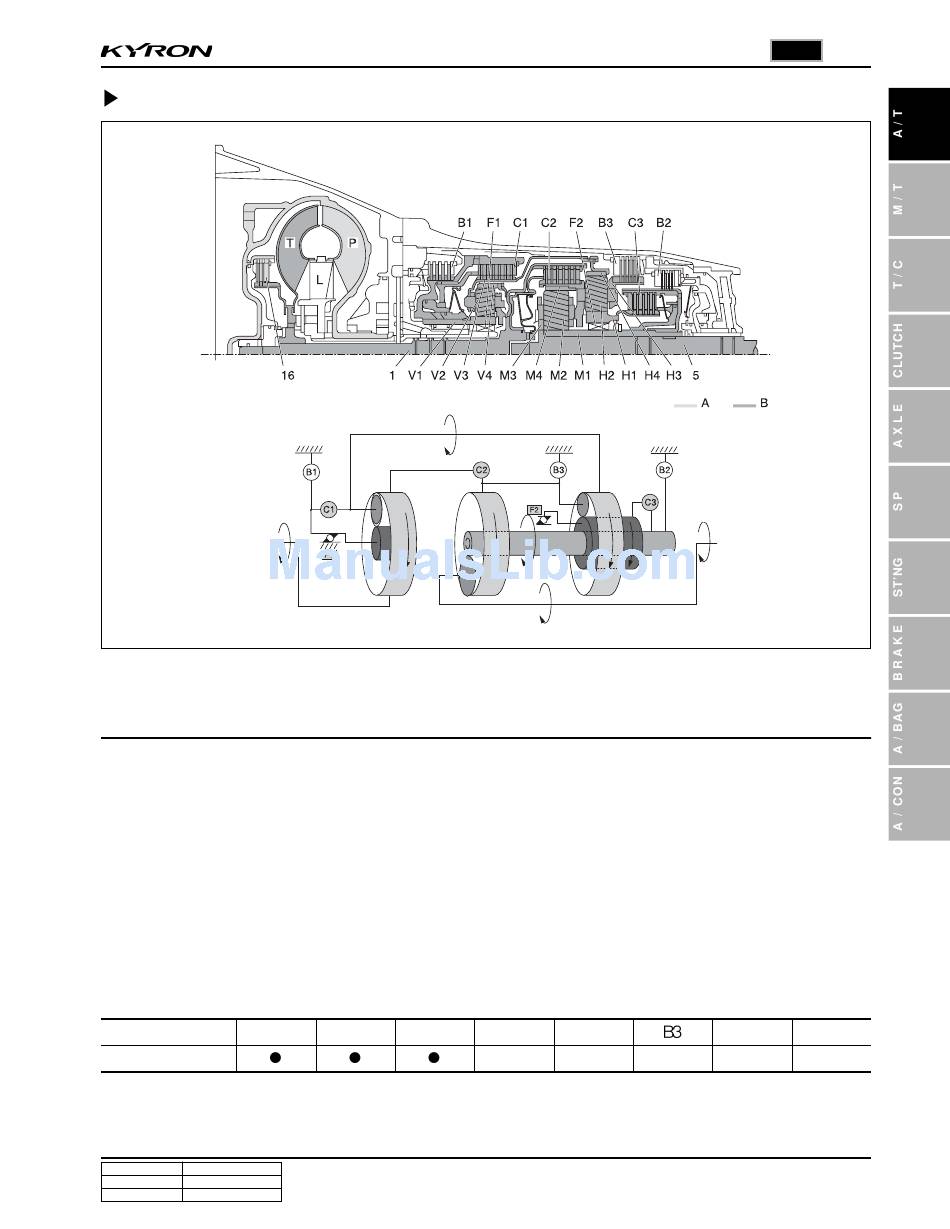

4th Gear (1.000)
16. Torque converter lockup clutch
A. Engine speed
B. Planetary gear set
1. Input shaft: Clockwise rotation
2. Front ring gear: Clockwise rotation
3. Center ring gear and rear planetary gear carrier: Clockwise rotation
4. Front sun gear and planetary gear carrier: Clockwise rotation (direct connection)
5. Rear ring gear: Clockwise rotation
6. Rear sun gear: Rotation by ring gear and planetary gear carrier (direct connection)
7. Center sun gear: Clockwise rotation by C3 activation
8. Planetary gear carrier: Clockwise rotation by center sun gear and ring gear (direct connection)
9. Output shaft: Clockwise rotation
Gear C1
4
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
L. Stator
M. Center planetary gear set
P. Impeller
C2 C3 B1
Output
T. Turbine wheel
V. Front planetary gear set
B2 F1
AUTO TRANSMISSION
15
3650
F2
