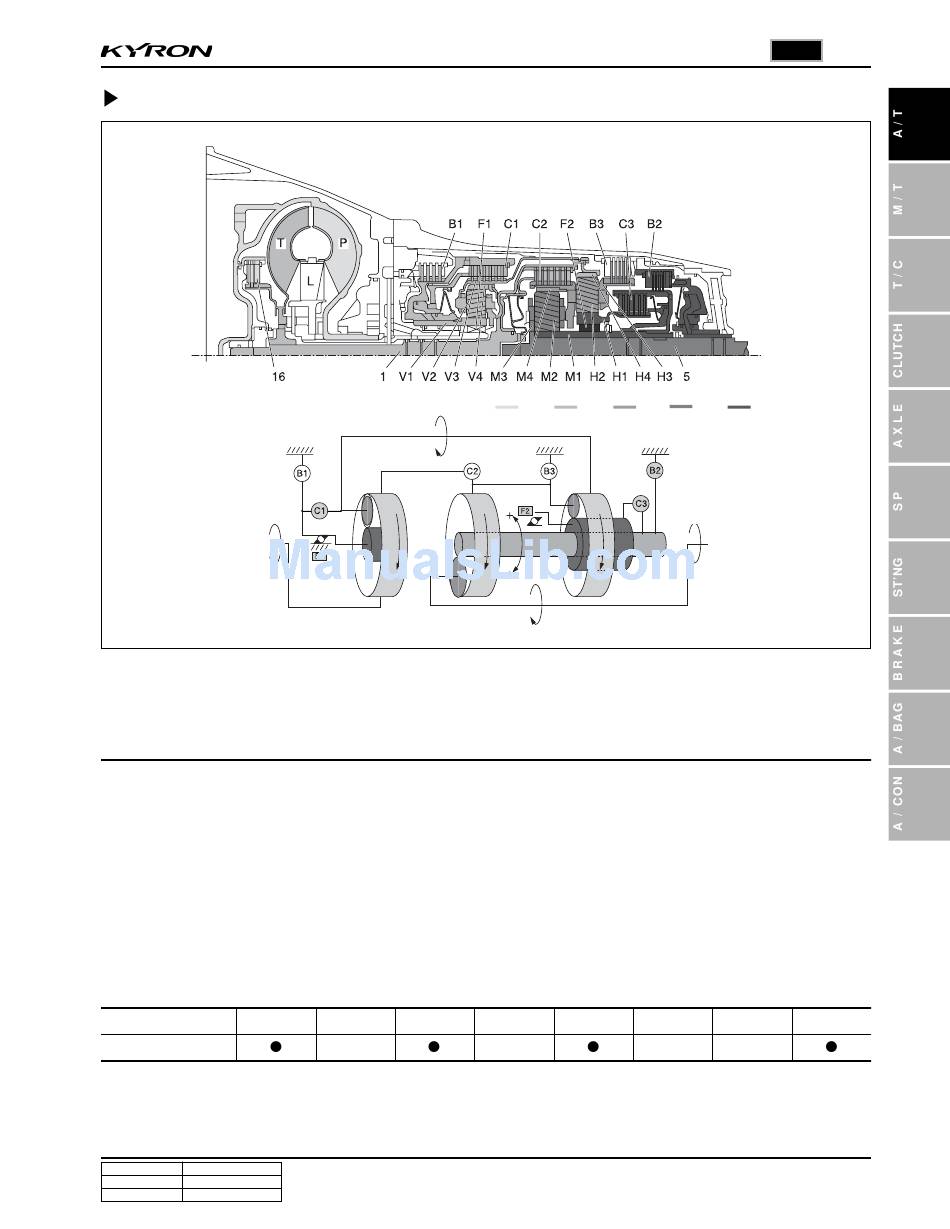

2nd Gear (D20DT: 2.423, D27DT: 2.186)
16. Torque converter lockup clutch
A. Engine speed
B. Transmission, input shaft
C. 1st gear ratio
1. Input shaft: Clockwise rotation
2. Sun gear and planetary gear carrier: Clockwise rotation by C1 activation
3. Rear ring gear: Clockwise rotation
4. Rear sun gear: Locked by F2 and B2, Planetary gear carrier: Rotation with reduced speed
5. Center ring gear: Clockwise rotation
6. Sun gear: Locked by B2, Planetary gear carrier: Rotation with reduced speed
7. Output shaft: Clockwise rotation
