20 Expand Modifiers. Turn on the visibility of Frame and Box. Turn off all
other modifiers.

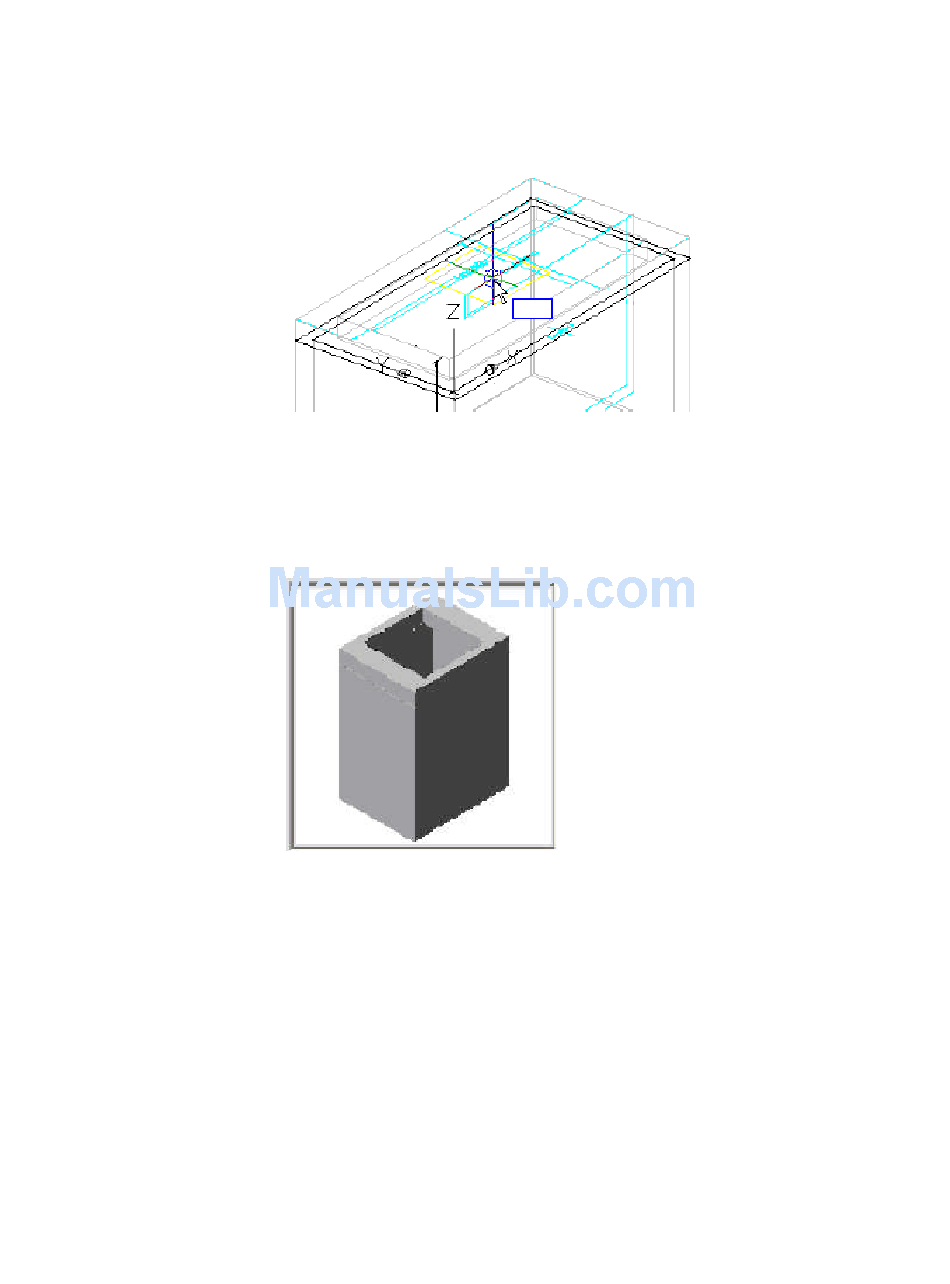

21 Click Generate Bitmap.
22 Click SW Isometric View. Click OK. A bitmap image has been generated
for the part catalog.
23 Click Save Part Family. Exit the Part Builder Environment.
To continue this tutorial, go to

Exercise 5: Using the New Part

In this exercise, you will insert the new vault part into a AutoCAD Civil 3D
pipe network, and investigate how it behaves as a pipe network structure.
Exercise 5: Using the New Part
Exercise 5: Using the New Part | 735
(page 735).
