4 Press Esc.
This action ends the subassembly placement command.
Mirror the subassemblies to the left of the baseline
1 In the drawing, select the four subassemblies you added.
2 Right click. Click Mirror.
3 Click the marker point on the assembly baseline.

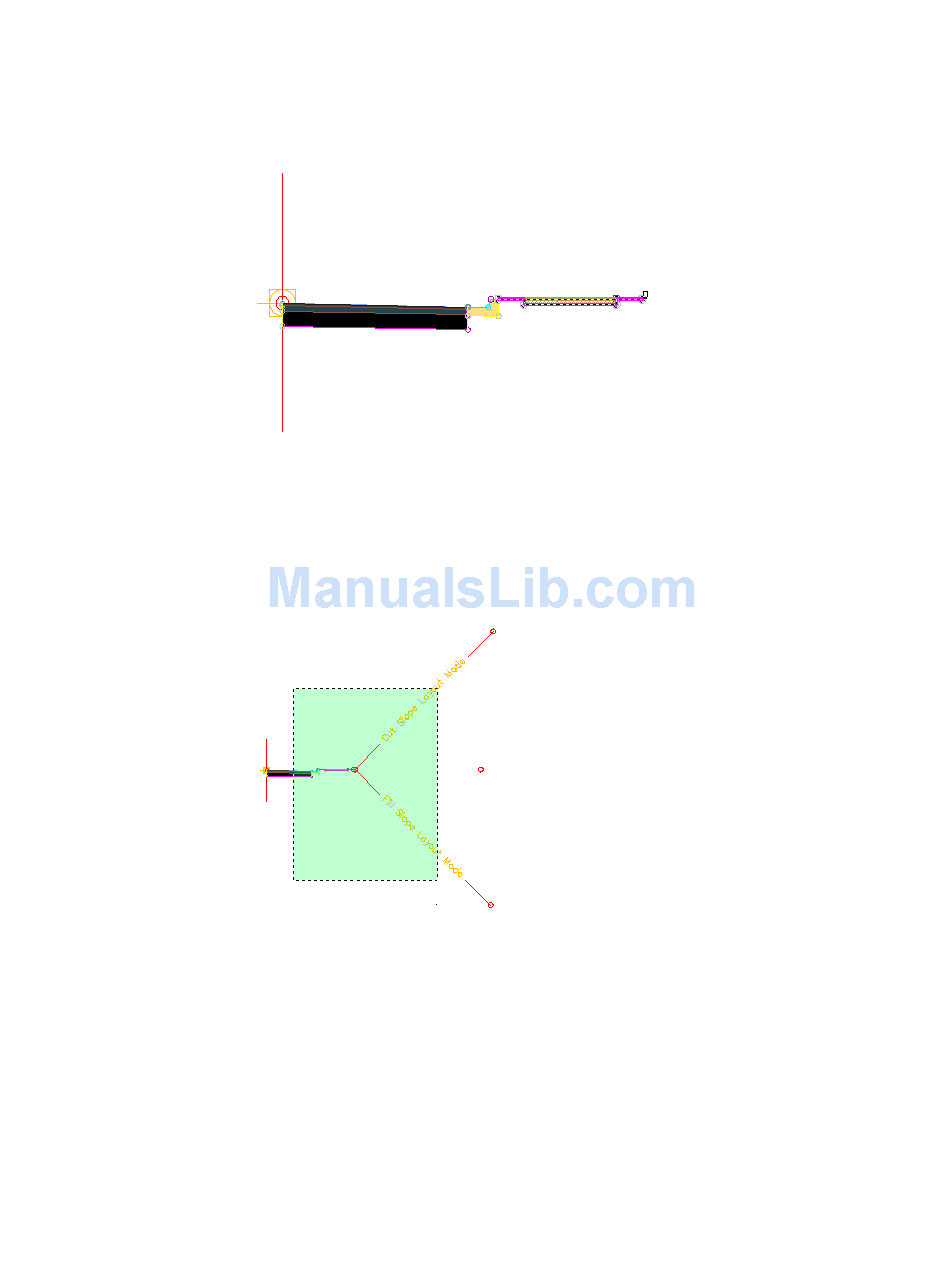

The subassemblies are displayed on the left side of the assembly marker.
The Mirror command creates a mirror image of the selected subassemblies.
426 | Chapter 12 Corridor Assembly Tutorials
