Exercise 1: Creating an Alignment with the Alignment
Layout Tools
In this exercise, you will use the alignment layout tools to draw an alignment
that has curves.
For more information, see the AutoCAD Civil 3D Help topic Creating an
Alignment Using the Alignment Layout Tools.
Specify alignment properties
1 Open Align-1.dwg, which is located in the
819).

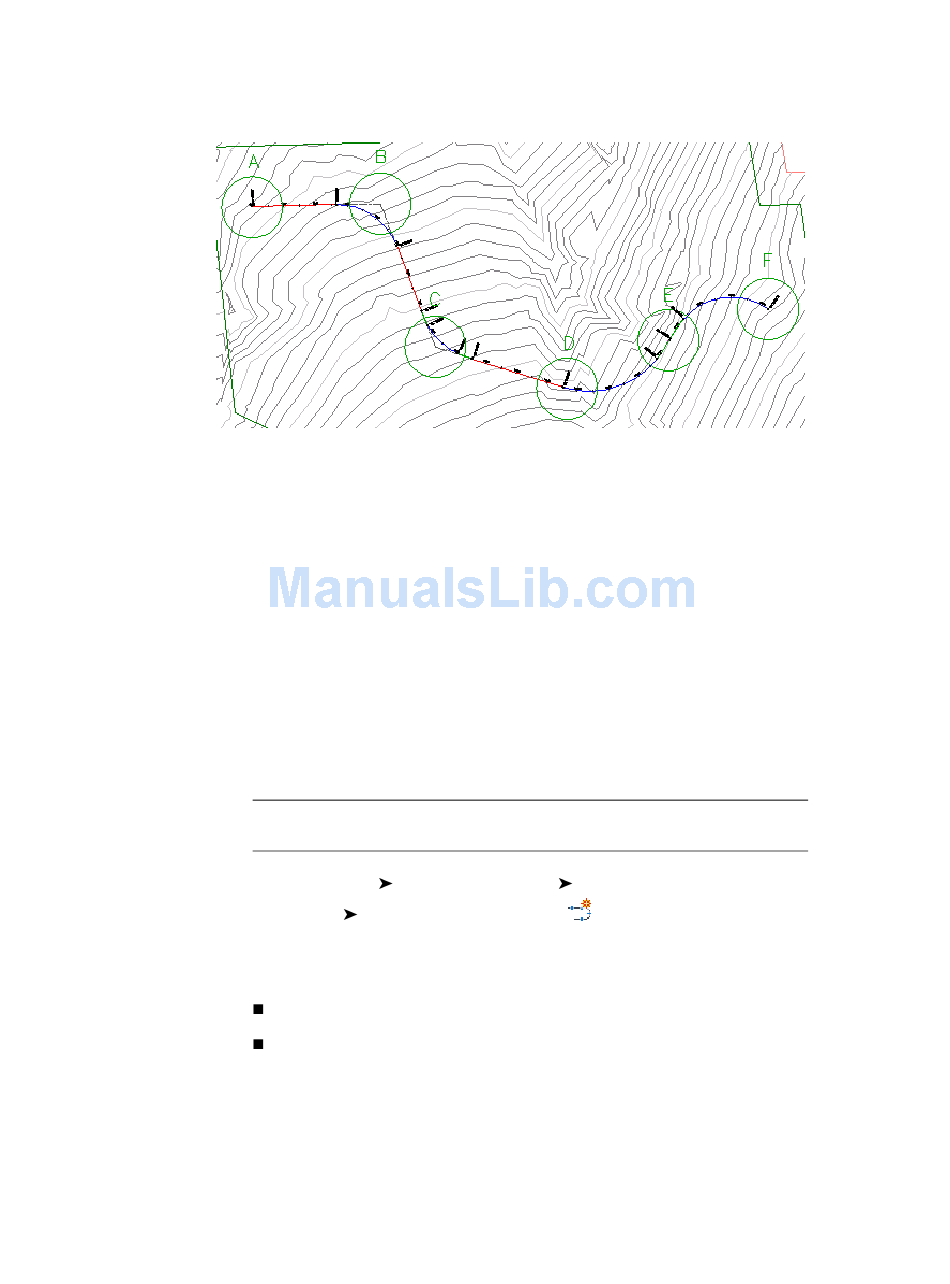

The drawing contains a surface marked with several circles, labeled A
through D.
NOTE Ensure that Object Snap (OSNAP) is turned on. For more information,
see Object Snapping
2 Click Home tab
drop-down
3 In the Create Alignment – Layout dialog box, for Name, enter First Street.
4 On the General tab, select the following settings:
Site: <None>
Alignment Style: Layout
214 | Chapter 8 Alignments Tutorials
(page 16).
Create Design panel
Alignment Creation Tools
tutorial drawings folder (page
Alignment
.
