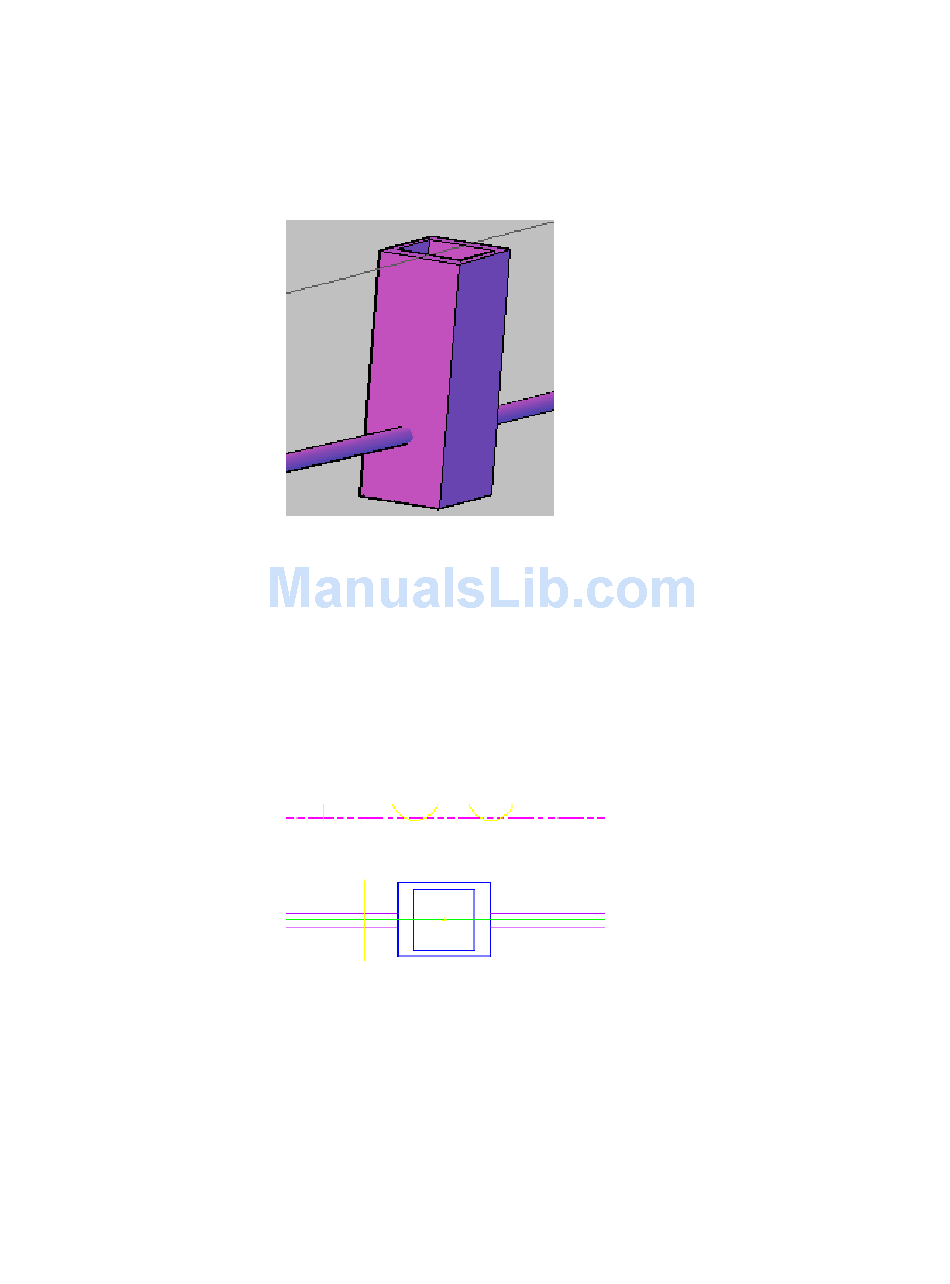

9 Expand Vault 5106-LA with Top 5106-TL3-332, and select the part beneath
it. The part now is displayed as the vault in 3D view, but still is displayed
as a manhole in plan view.
10 Click the structure in any of the views. Right-click and then click Structure
Properties.
11 Click the Information tab. Click the black triangle next to the edit button,
and select Create New.
12 Click the Information tab. Enter Model for Name.
13 Click the Profile tab. Click Display as solid.
14 Click the Display tab. Set the visibility for Model 3D Solid to On.
15 Click OK twice. Note the change to the appearance of the structure in
plan view. The vault structure now is displayed with its actual dimensions.
16 Click the vault structure. Right-click and select Structure Properties. Click
the Part Properties tab.
Exercise 5: Using the New Part | 737
