is in the correct position. Repeat this process for the three remaining
lower edges.

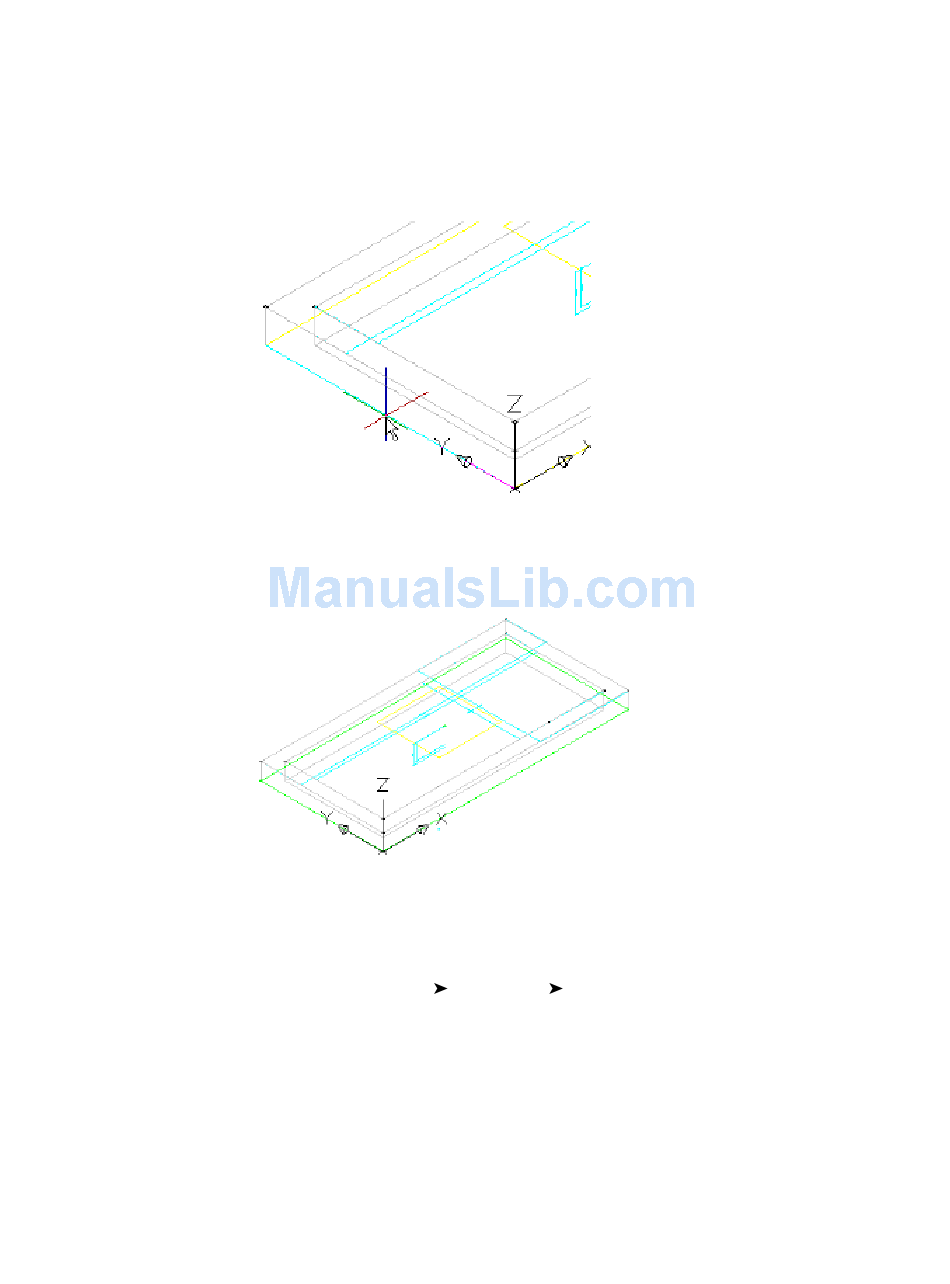

This creates geometry that is linked to the lower edge of the frame
extrusion. This is a key relationship in building the box section below
the frame so that it is aligned with the frame. The projected geometry is
displayed in green.
8 Set the visibility of all geometry and profiles in the Rim work plane to
off. Right-click Top of Box and then click Set View. Objects in the Rim
work plane are turned off so that you do not snap to them or use them
inadvertently.
9 Right-click Top of Box
for rectangle points.
720 | Chapter 18 Part Builder Tutorials
Add Profile Rectangular. You are prompted
