The view/edit corridor section tools are useful for inspecting how the corridor
assemblies interact with other objects in the corridor model.
For more information, see the AutoCAD Civil 3D Help topic Viewing Corridor
Sections.
View a corridor in section
1 Open Corridor-4a.dwg, which is available in the
(page 819).
The drawing contains an assembly, profile view, and corridor model.
Each object is displayed in a separate viewport. The viewport that contains
the assembly is active.
2 Click Modify tab
3 Click Corridor tab
.
4 On the Section Editor tab, on the Station Selection panel, in the Select
A Station list, select 0+00.00.

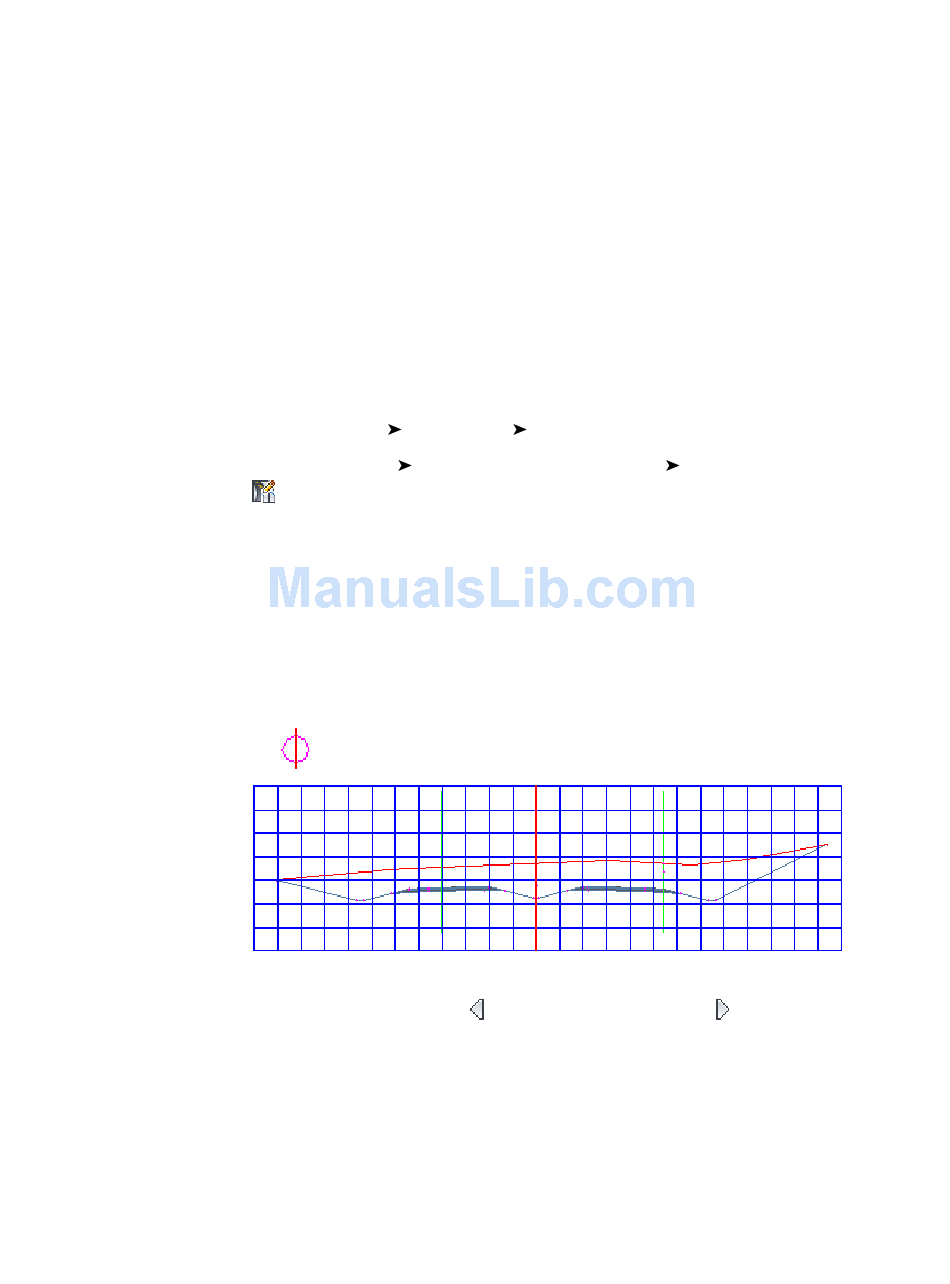

A cross-section of the corridor at the starting station is displayed. The
elevations and offsets are displayed on the grid axes. The cross section
view contains the assembly, as well as the other adjacent objects.
At the current station, the offset alignments are represented by vertical
green lines, and the existing ground surface is represented by the
horizontal red line. The vertical red line in the center of the grid represents
the assembly baseline. Profile intersections with the baseline are indicated
by
5 Use the tools on the Section Editor tab to view the corridor sections at
each corridor station. Click
Next Station, or select stations from the Select A Station list.
478 | Chapter 13 Corridors Tutorials
Design panel
Modify Corridor Sections panel
markers.
Go To Previous Station and
tutorial drawings folder
Corridor.
