Notice that the affected attributes update in the Profile Entities vista and
Profile Layout Parameters window.
Further exploration: Click another grip and move it to a new location.
Note how other grips react.

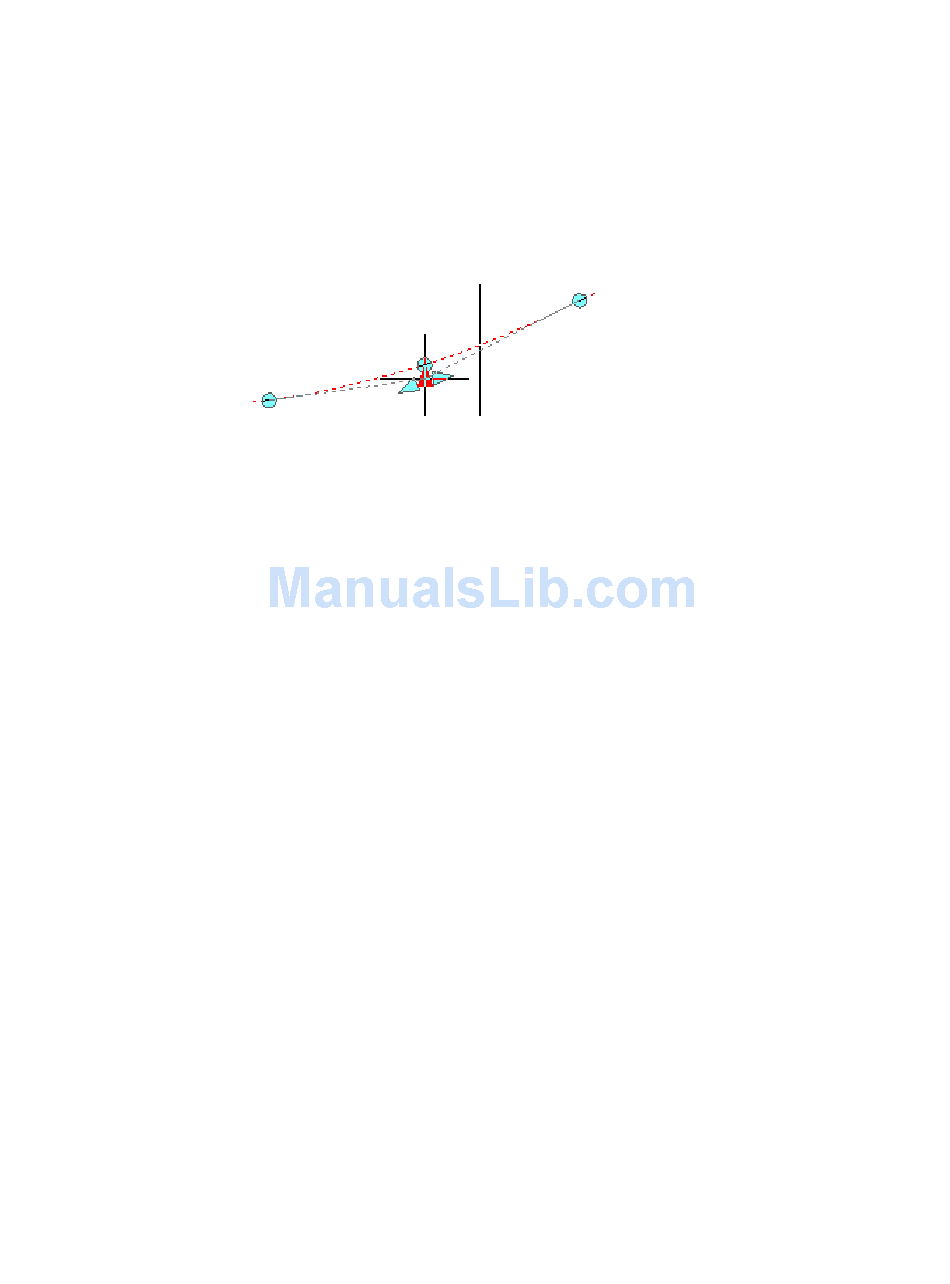

3 Click the triangular grip at the curve midpoint.
4 Move the cursor to a new location closer to or farther from the PVI, then
click.
In the Profile Entities vista, notice which entity's PVI Elevation updates.
5 Select the row of the entity that you changed.
The entity's attribute values are displayed in the Profile Layout Parameters
window.
6 Close the Profile Layout Tools toolbar.
The Panorama window (Profile Entities vista) and Profile Layout
Parameters dialog box close.
To continue this tutorial, go to
Vertically

Exercise 3: Copying a Profile and Offsetting it Vertically

In this exercise, you will copy part of a centerline layout profile. You will use
the copy to create a starting line for a ditch profile that is a specified distance
below the centerline.
For more information, see the AutoCAD Civil 3D Help topic Copying a Profile.
This exercise continues from
Copy the layout profile
1 Open Profile-3B.dwg, which is located in the
819).
294 | Chapter 9 Profiles Tutorials
Exercise 3: Copying a Profile and Offsetting it
(page 294).
Exercise 2: Editing a Layout Profile (page 292).
tutorial drawings folder (page
