Modify the properties of the split profile view
1 In Toolspace, on the Prospector tab, expand the Alignments
Alignments Ridge Road
Notice that a single new profile view (PV - (4)) was created.
2 On the Prospector tab, right-click PV - (4). Click Properties.
3 In the Profile View Properties dialog box, on the Elevations tab, under
Elevation Range, change the Height to 15.000'.
4 Click Apply.

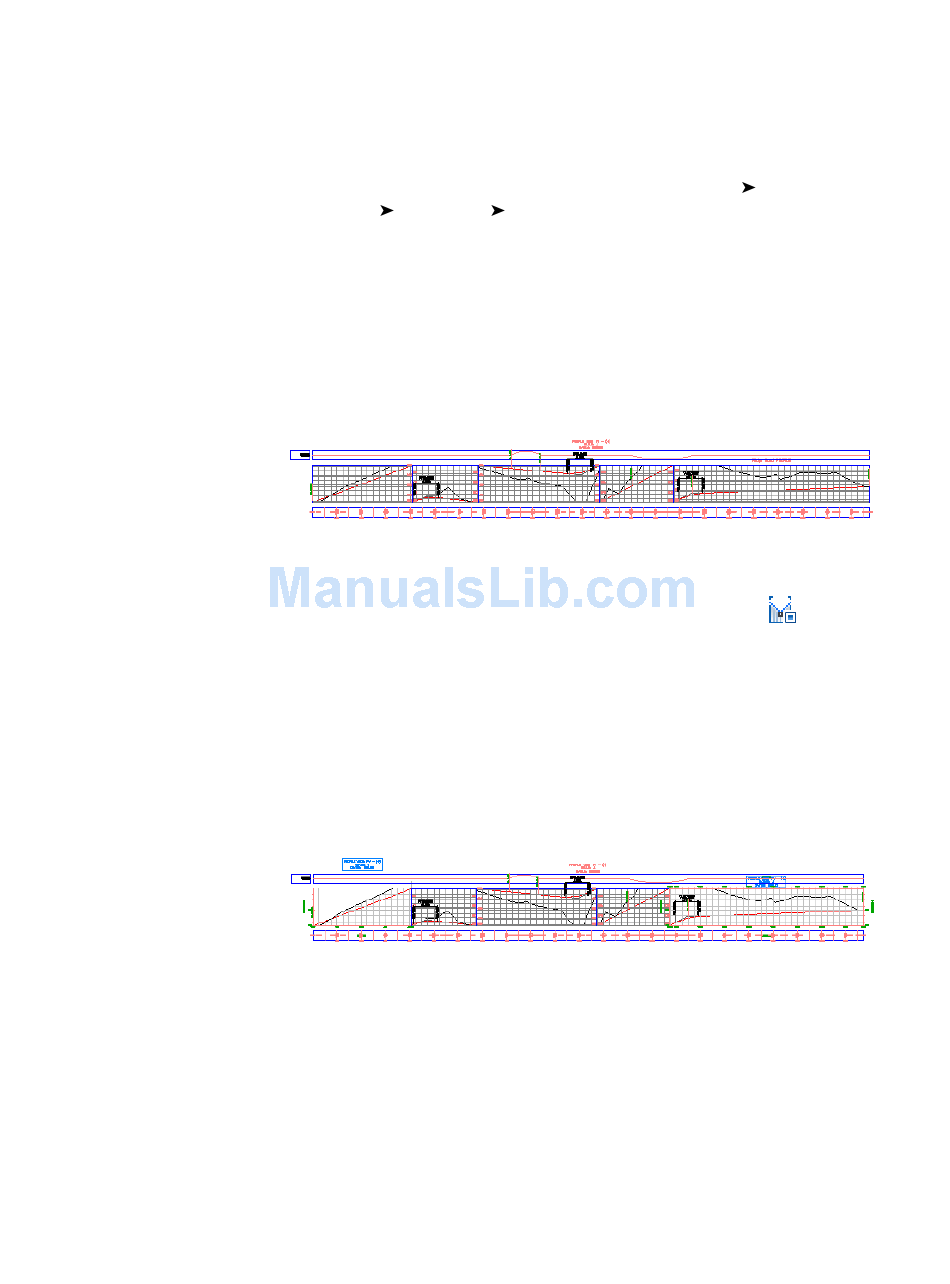

Notice that in the drawing window, the profile view has been split into
five segments to accommodate the new height.
Now you will change the style of the first and last profile view segments.
5 In the Profile View Properties dialog box, in the Split Profile View Data
table, in the No. 1 row, in the Profile View Style column, click
6 In the Pick Profile View Style dialog box, select Left & Bottom Axis. Click
OK.
7 Repeat steps 5 and 6 to change the Profile View Style in row No. 4 to Full
Grid.
8 Click OK.
Three different profile view styles are displayed in the single profile view
grid. While a split profile is displayed in a single profile view grid, it may
have separate styles applied to each of its split segments.
