10 Click OK three times.
Add parts with pay items to the pipe network
1 In the drawing, select a pipe. Click Pipe Networks tab
Edit Pipe Network.
2 On the Network Layout Tools toolbar, specify the following parameters:
Structure: Eccentric Structure 48 dia 24 frame 24 cone 5 wall 6 floor
Mat_CONC
Pipe: 18 inch RCP
3 In the drawing, click two points.
This action creates two structures that are connected by a pipe.
4 Press Enter.

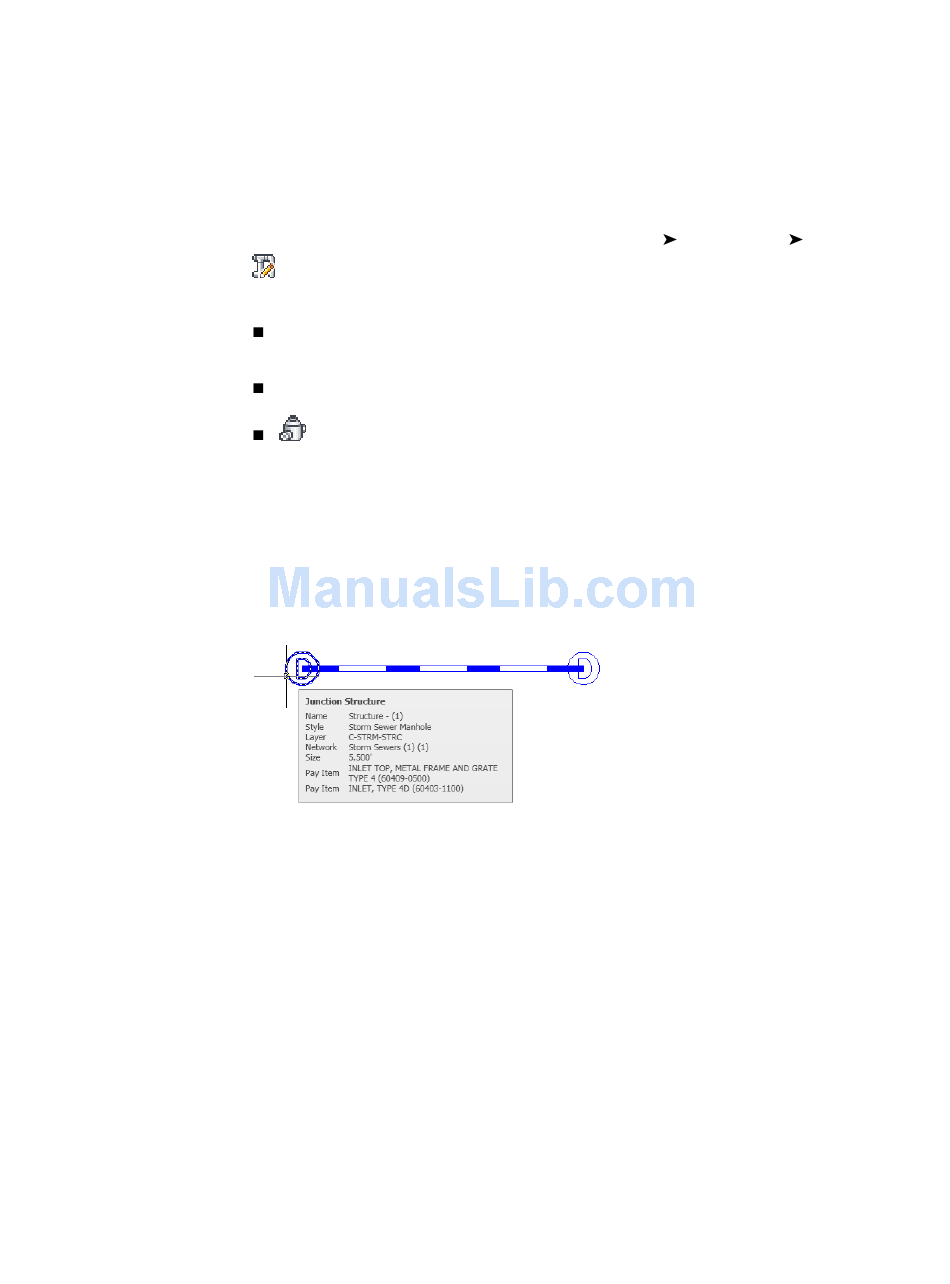

5 Hover the cursor over one of the new structures.
The tooltip displays the description and ID of each pay item that has
been assigned to that structure.
Assign pay items to existing pipe network parts
1 In the drawing, select one of the catch basins along the road.
614 | Chapter 16 Material Calculation Tutorials
Pipes and Structures: Selected
Modify panel
