Parcel layout tools are available to create and edit parcels with precision. You
will learn more about the Parcel Layout tools in later AutoCAD Civil 3D tutorial
exercises.
For more information, see the AutoCAD Civil 3D Help topic Creating Parcels
from Objects.

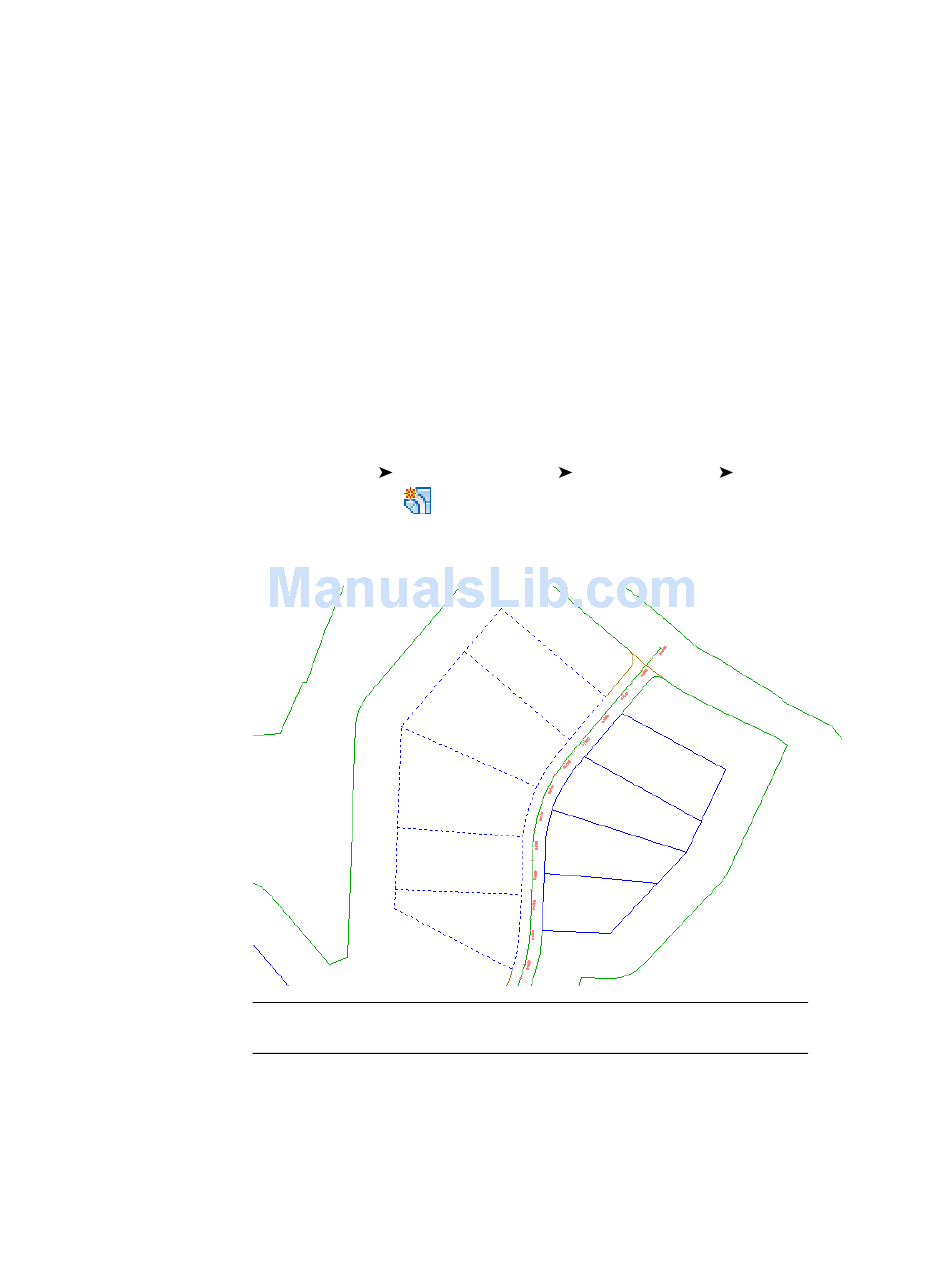

Create parcels from existing AutoCAD objects
1 Open drawing Parcel-1A.dwg, which is located in the
folder
This drawing contains an existing ground surface, alignments that
represent intersecting road centerlines, and AutoCAD lines and arcs that
represent property boundaries. In the following steps, you will create
AutoCAD Civil 3D parcel objects from the existing lines and arcs.
2 Click Home tab
Parcel From Object
3 Select the lines and the polyline border at the east side of the site, north
of the First Street alignment. Press Enter.
NOTE On the command line, notice that a variety of AutoCAD objects can
be used to create parcels.
342 | Chapter 10 Parcels Tutorials
