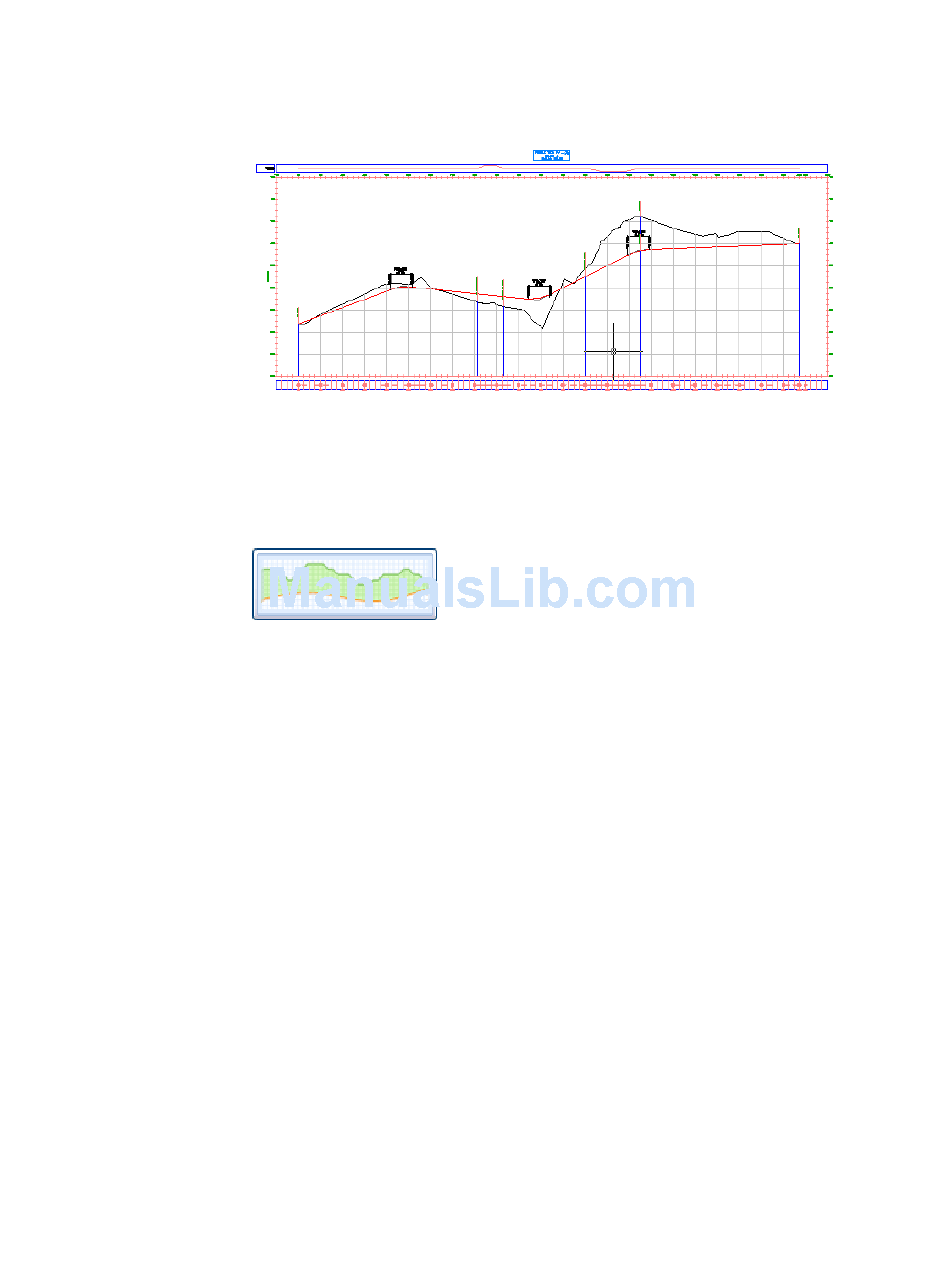

2 Click the Profile View PV - (3) grid to select the profile view. Right-click.
Click Profile View Properties.
Define a cut area hatch
1 In the Profile View Properties dialog box, on the Hatch tab, click
A Cut - (1) area is displayed in the Hatch Area table. For Upper Boundary,
the first surface profile in the list is automatically assigned. For Lower
Boundary, the first layout profile in the list is assigned automatically.
2 In the Shape Style column, click Standard.
3 In the Pick Shape Style dialog box, select Cut. Click OK.
4 In the Profile View Properties dialog box, click Apply.
The specified shape style is displayed in the cut areas between the profiles.
312 | Chapter 9 Profiles Tutorials
Cut Area.
