17 Click Save Part Family. The part is saved.
Next you will add Profiles that represent the diameters of the frame, top
of cone, barrel, and drop pipe.
First, you'll create the profile for the frame diameter.

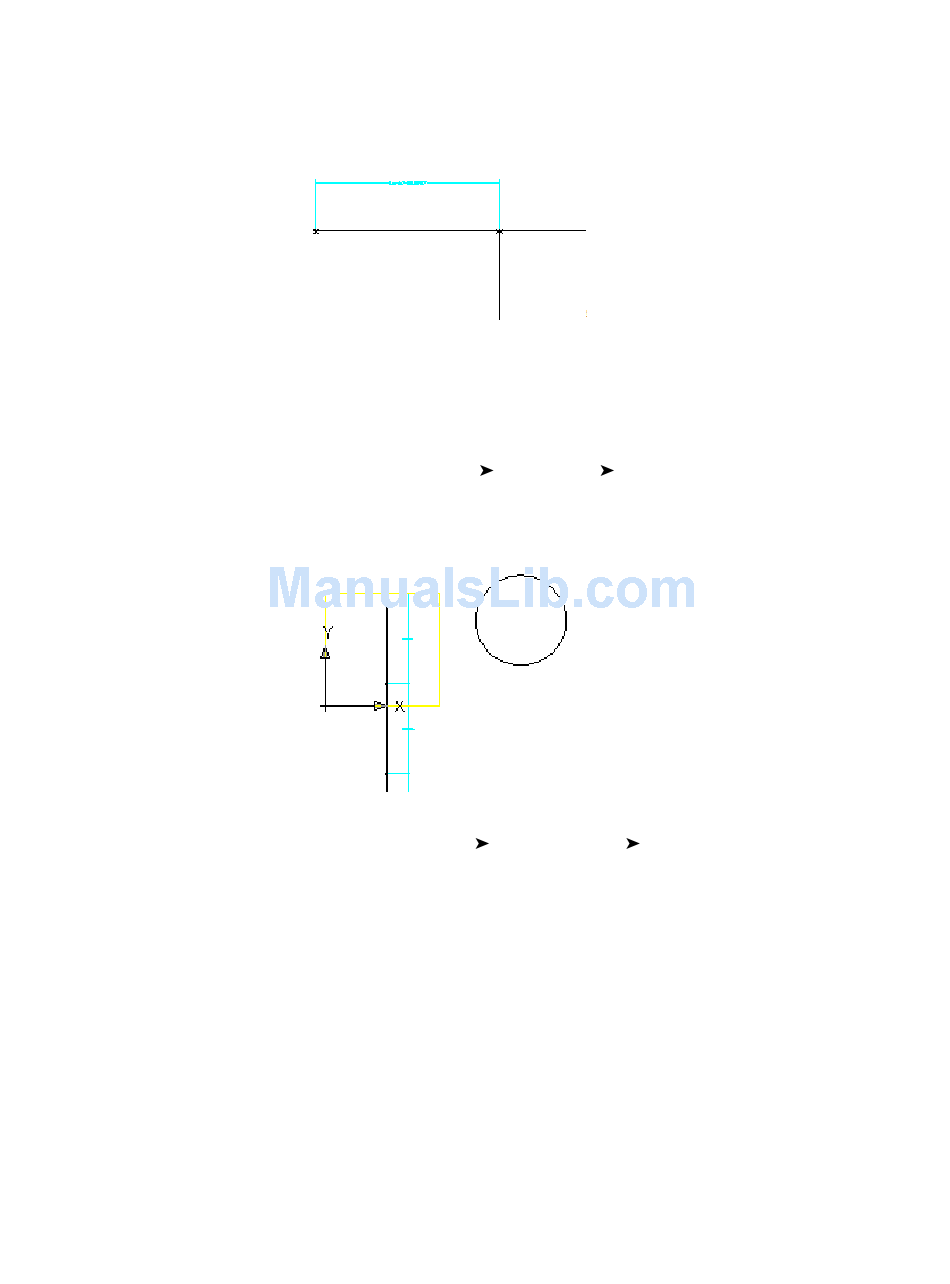

18 Right-click Vertical Axis
near the top right of the vertical axis to define the center and then click
again about 12 units away to define the diameter. A circle profile is drawn.
19 Right-click Vertical Axis
drawn in the previous step. Click a point to set the location of the
dimension. BdyD2 is created for the frame diameter.
Exercise 2: Defining the Manhole Geometry | 685
Add Profile
Circular. Click an open area
Add Dimension
Diameter. Click the circle
