8 Repeat Steps 6 and 7 for the other two profiles.
9 Click Create Profile View.
10 In the drawing, pan and zoom to a blank area at the lower right of the
surface. Click at a suitable location for the lower left corner of the profile
view grid.

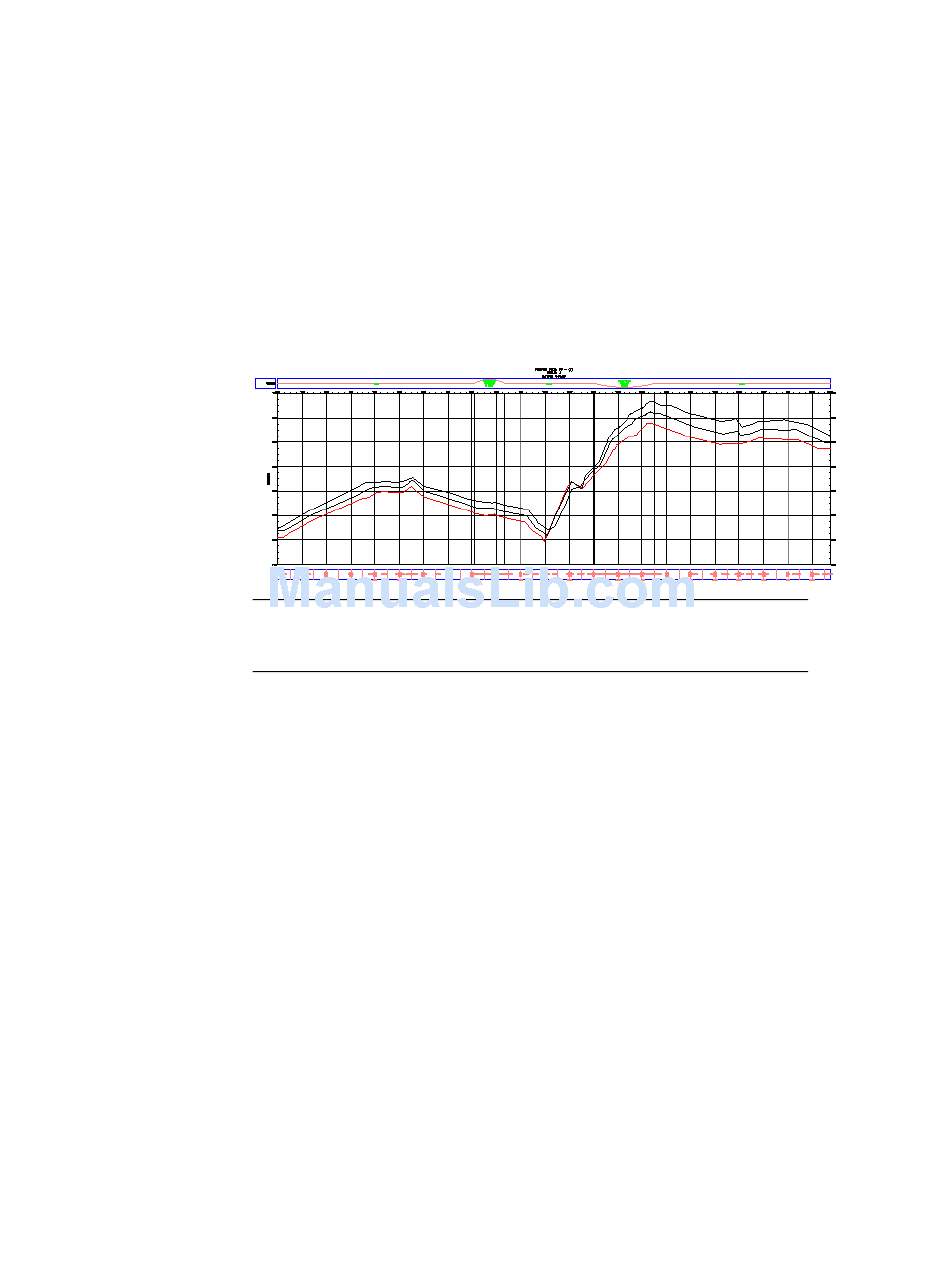

The profile view is drawn, with a grid, axes, title, and two data bands
along the X axis, one above the grid and another below it.
Because of its style, the left offset line is red.
NOTE If you want to move a profile view within a drawing, click anywhere
on the grid to select it. A blue grip appears near the lower left corner. Click
the grip and drag the profile view to a new location.
To continue this tutorial, go to
(page 282).

Exercise 2: Changing the Profile Style

In this exercise, you will change a profile style in two different ways.
First, you will change a profile style globally, which changes the profile's
appearance in all profile views. Then, you will learn how to override a profile
style in a single profile view. Finally, you will hide the offset profiles.
For more information, see the AutoCAD Civil 3D Help topic Styles and Display
of Profile and Profile Views.
This exercise continues from
Profiles with Offsets
282 | Chapter 9 Profiles Tutorials
Exercise 2: Changing the Profile Style
Exercise 1: Creating and Displaying Surface
(page 280).
