Add spot elevation labels
1 In the Add Labels dialog box, specify the following parameters:
Label Type: Spot Elevation
Spot Elevation Label Style: Standard
2 Click Add. When prompted, click a point along the ridge to place a label.
3 In the Add Labels dialog box, set the Spot Elevation Label Style to Foot
Meter.
4 Click Add. When prompted, click a point along the ridge to place a label.
Using the Add Labels dialog box, you can change label properties as
needed while you create surface labels.
5 Click Close.
To continue to the next tutorial, go to

Tutorial: Editing Surface Data

This tutorial demonstrates some common surface editing tasks, including edge
swapping, TIN line deletion, and surface smoothing. You will also hide part
of the surface using a hide boundary.
For more information, see the AutoCAD Civil 3D Help topic Surface Editing
Operations.

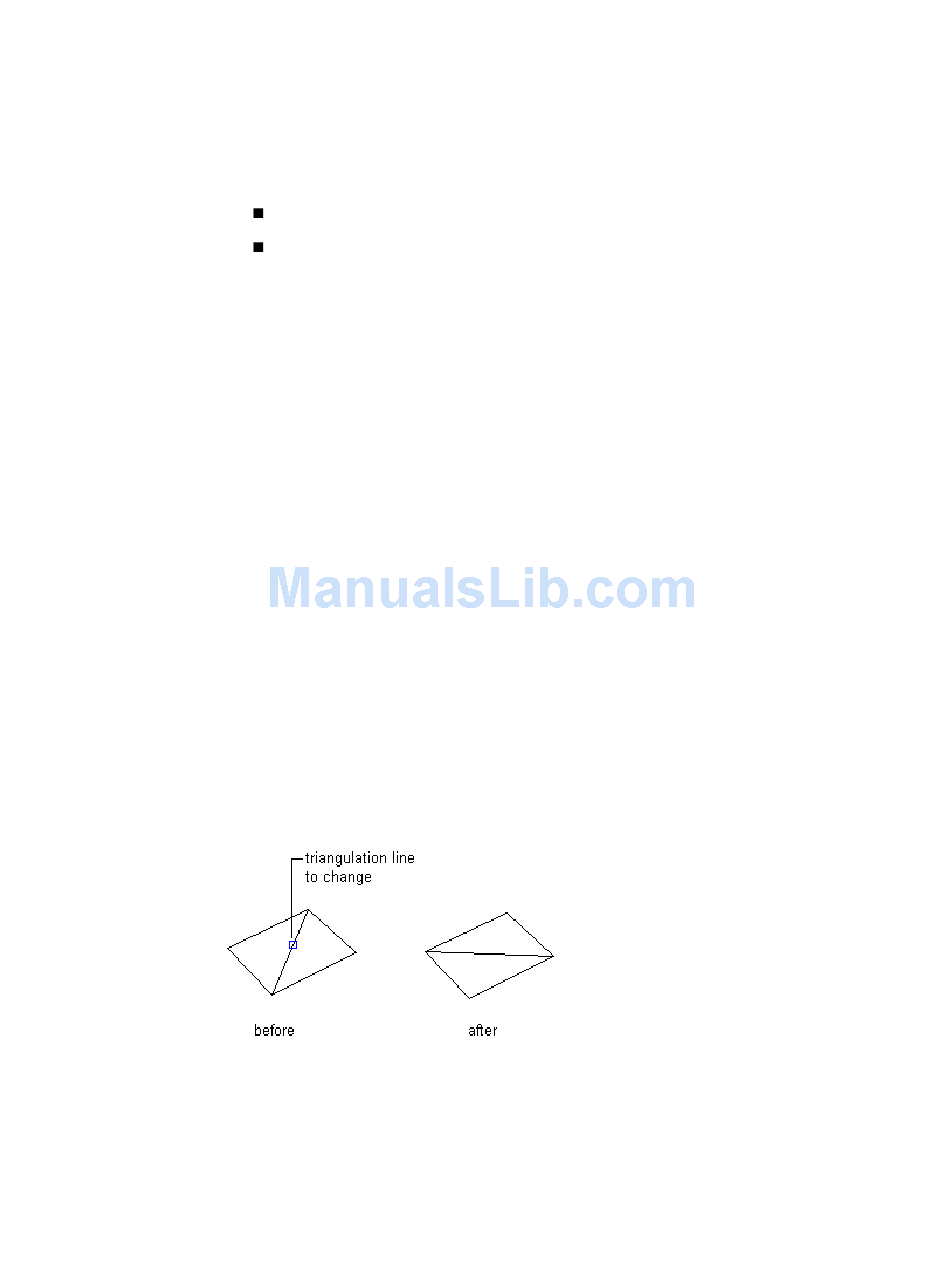

Edge Swapping
Edge swapping is used to change the direction of two triangle faces in the
surface, to create a more accurate surface model. For example, edges can be
swapped to match the triangle edges to ridges or swales.
86 | Chapter 5 Surfaces Tutorials
Editing Surface Data (page 86).
