6 In the Select Color dialog box, for Color, enter 92. Click OK.
7 In the Component Hatch Display table, for Pattern, click the Dash entry.
8 In the Hatch Pattern dialog box, for Pattern Name, select Cross.
9 Click OK four times.

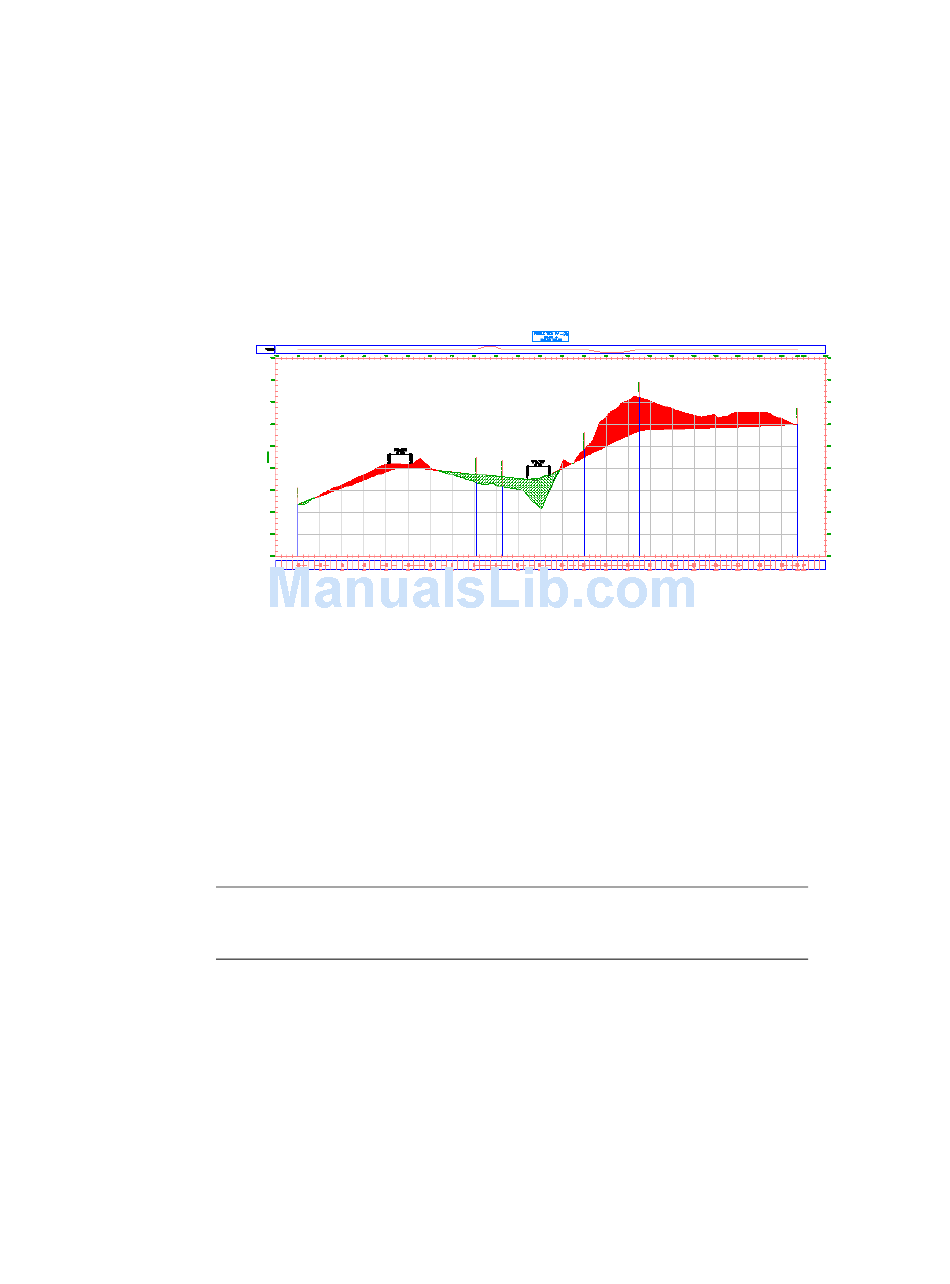

The Profile View Properties dialog box closes, and the new hatch pattern
is displayed in the fill areas between the profiles.
To continue this tutorial, go to
View (page 314).

Exercise 3: Projecting Objects onto a Profile View

In this exercise, you will project multi-view blocks, COGO points, and 3D
polylines from plan view onto a profile view.
You can project a variety of objects, such as AutoCAD points, solids, blocks,
multi-view blocks, 3D polylines, COGO points, feature lines, and survey figures
onto a profile view. The process you will use in this exercise can be applied
to any of these objects.
NOTE Before you project an object into a profile view, make sure that the object
has a defined elevation. Otherwise, the elevation may be zero, and the profile view
will be expanded vertically to accommodate the zero elevation value.
314 | Chapter 9 Profiles Tutorials
